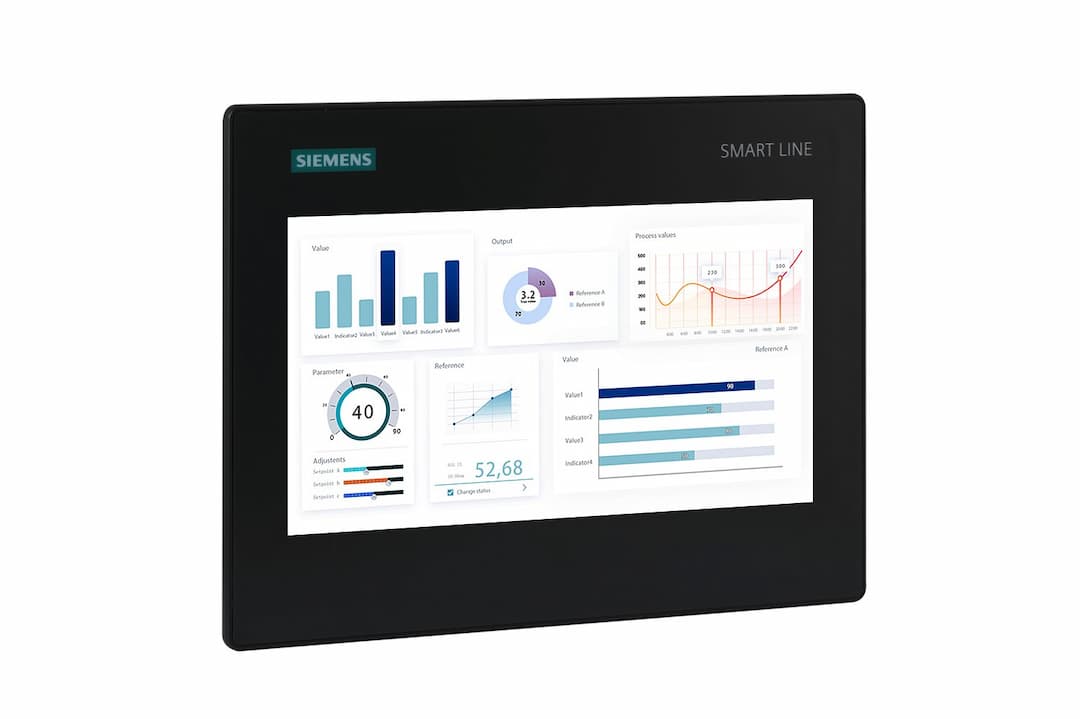

Product Model
6AV6648-0DC11-3AX0
Selling Points
- 1Advanced 7-inch widescreen TFT display with 16 million colors for vibrant and clear visuals.
- 2Equipped with RS-422/485 and Ethernet (RJ45) interfaces for seamless communication.
- 3Supports secure boot to prevent tampering with firmware files or altering flash content.
- 4Includes a real-time clock (RTC) and USB host port for enhanced functionality.
- 5Compatible with WinCC Flexible SMART V4 engineering software for easy configuration and operation.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Cut-out Dimensions | 192*138 | Dimensions | 209*155 |
Color Quantity/Gray Scale | 16M | Operating Voltage | 24V |
Vector Graphics Support | Yes | User Script Support | No |
Internal Variables | 800 | Pattern Type | Curves/Tables |
Communication Interface | Ethernet port + Serial port | Number of USB Interfaces | 1 |
SD Card Slot | No | Memory System | 256MB |
Operation Method | Touch | Resolution | 800*480 |
Display Size (inches) | 7" | HMI Model | Smart 700 IE V4 |
Lifecycle | Delivery Release (PM300) | Country of Origin | China |
ECCN | EAR99H | AL | N |
Model Number | 6AV6648-0DC11-3AX0 |
Specifications may be subject to change without notice
