Product Model

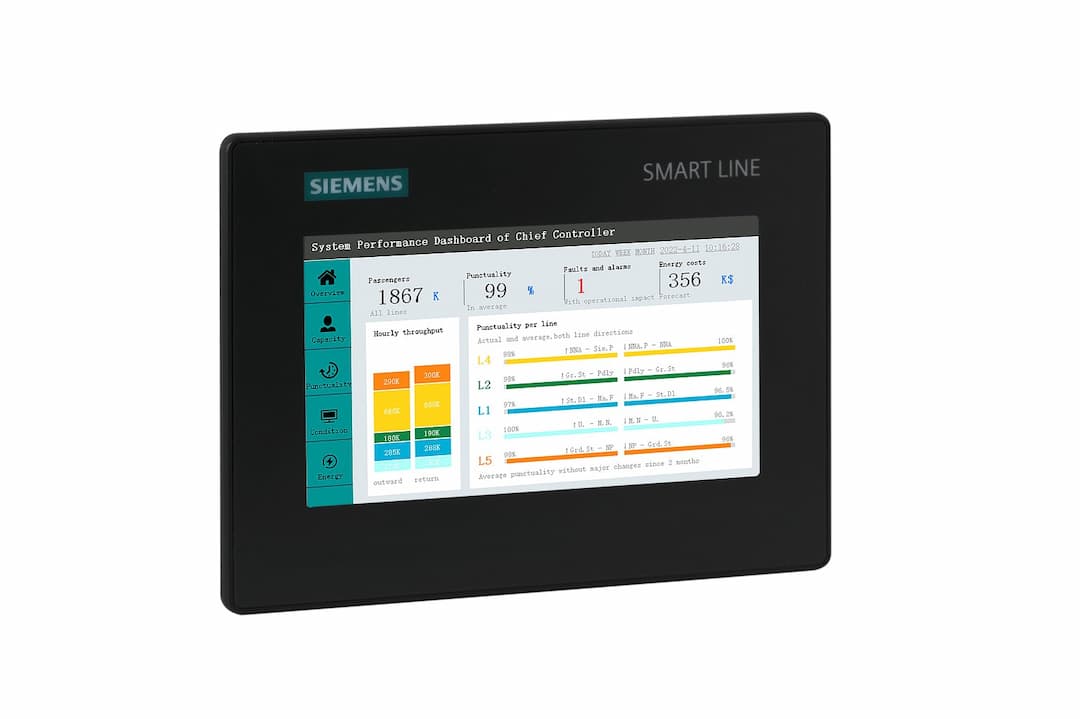

6AV6648-0DE11-3AX0
Selling Points
- 1Advanced Touchscreen Display: Equipped with a 10" widescreen TFT display offering 16 million colors for enhanced visualization.
- 2Robust Industrial Interfaces: Includes RS-422/485 and Ethernet (RJ45) interfaces for reliable communication in industrial environments.
- 3Configurable with WinCC Flexible SMART: Easily configurable using WinCC flexible SMART software for customized automation solutions.
- 4Real-Time Clock (RTC) Support: Integrated RTC for precise timing and scheduling in industrial applications.
- 5Comprehensive Safety Features: Designed with safety in mind, including protection against foreign objects and water, ensuring reliable operation in harsh conditions.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Cutout Dimensions | 259*201 | Dimensions | 276*218 |
Color Quantity/Gray Scale | 16M | Operating Voltage | 24V |
Vector Graphics Support | Yes | User Script Support | No |
Internal Variables | 800 | Pattern Type | Curves/Tables |
Communication Interface | Ethernet port + Serial port | Number of USB Ports | 1 |
SD Card Slot | No | Memory System | 256MB |
Operation Method | Touch | Resolution | 1024*600 |
Display Size | 10” | HMI Model | Smart 1000 IE V4 |
Lifecycle | P.M300 | Country of Origin | China |
ECCN | EAR99H | AL | N |
Model Number | 6AV6648-0DE11-3AX0 |
Specifications may be subject to change without notice
