Product Model

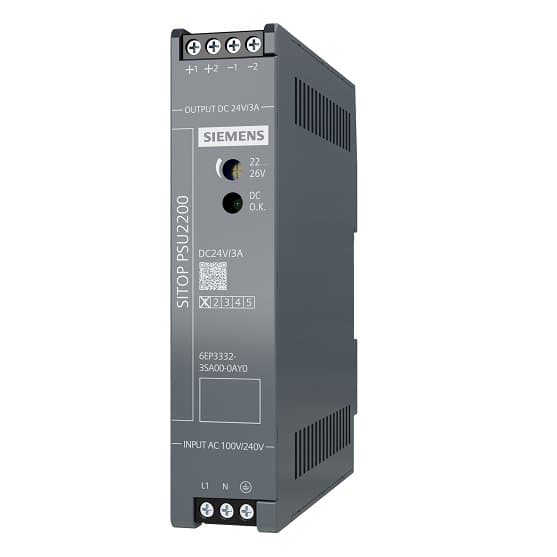

6EP3332-3SA00-0AY0
Selling Points
- 1Wide input range: 100-240V AC for versatile applications.
- 2High efficiency: Up to 90% efficiency for minimal power loss.
- 3Robust protection: Overvoltage, overcurrent, and short-circuit protection.
- 4Adjustable output voltage: 22.2-26.4V via potentiometer for flexibility.
- 5Compact design: 54 x 53 x 90mm for easy integration in tight spaces.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Weight | 0.22kg | Depth | 102mm |
Height | 123.6mm | Width | 27mm |
PCB Conformal Coating | Yes | Cold Start Temperature | -30℃ |
Operating Temperature | -20~+70℃ | Protection Rating | IP20 |
Output Power | 72W | Input Voltage Range | AC 85~264V |
Power Phases | Single-phase AC input DC output | Output Current | 3A |
Adjustable Output Voltage Range | DC21.6~26V | Output Voltage | DC 24V |
Input Voltage | AC 85~264V | Lifecycle | P.M280 |
Country of Origin | China | ECCN | EAR99 |
AL | N | Model Number | 6EP3332-3SA00-0AY0 |
Specifications may be subject to change without notice
