Product Model

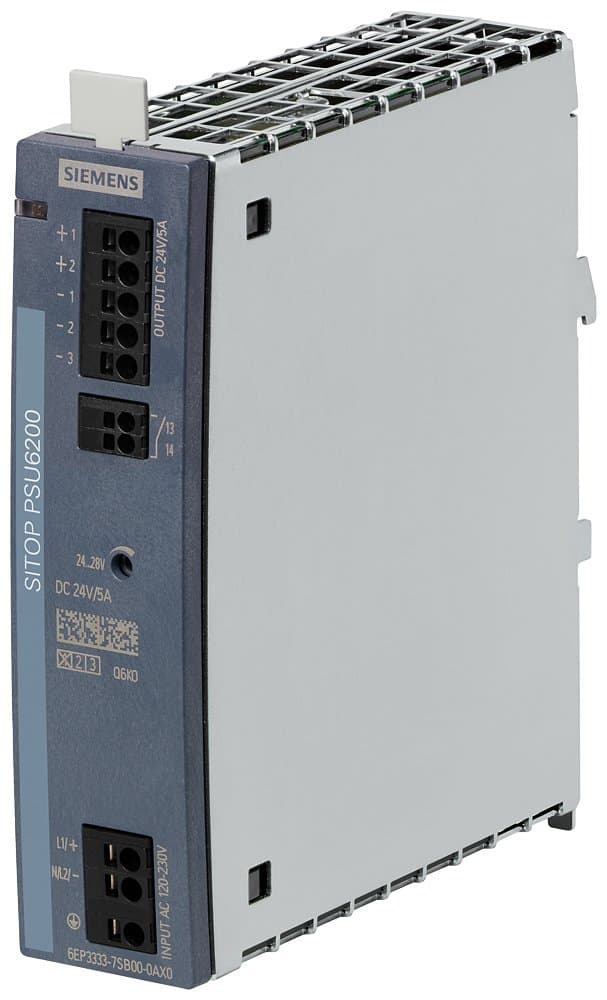

6EP3333-7SB00-0AX0
Selling Points
- 1Supports 120-230V AC or 120-240V DC input for flexibility in various applications.
- 2Achieves 90.2% efficiency, minimizing power loss and reducing operational costs.
- 3Includes overvoltage protection up to 300V AC for 30 seconds and short-circuit protection with shutdown and periodic restart attempts.
- 4Ensures safety with galvanic isolation between input and output, meeting safety standards like EN 60950-1.
- 5Compact dimensions (35 x 135 x 125 mm) make it easy to install on DIN rail EN 60715 35x7.5/15.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Rated Output Power | 120W | Input Voltage Range | AC 85-264V (DC 99-275V) |
Number of Power Phases | Single phase AC or DC | Rated Output Current | 5A |
Rated Output Voltage | DC 24V | Rated Input Voltage | AC 120-240V (DC 120-240V) |
Lifecycle | P.M300 | Country of Origin | Germany |
ECCN | N | AL | N |
Model Number | 6EP3333-7SB00-0AX0 |
Specifications may be subject to change without notice
