Product Model

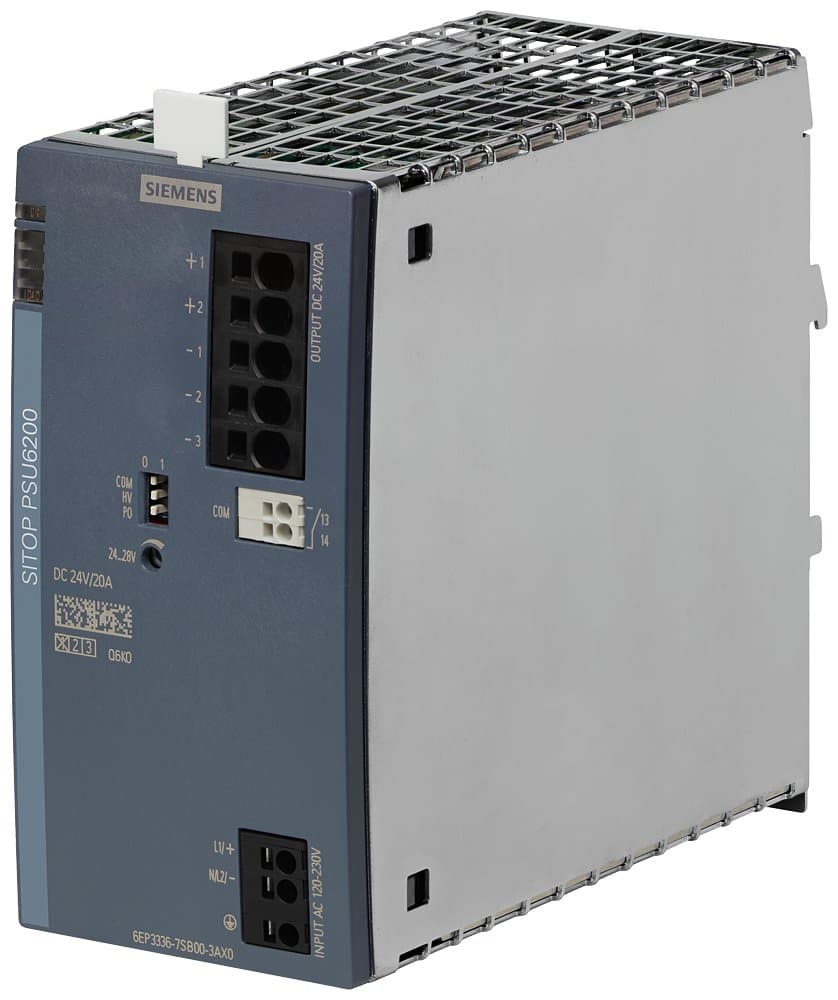

6EP3336-7SB00-3AX0
Selling Points
- 1Wide input range: 120-230 V AC and 110-240 V DC.
- 2Output voltage: 24 V DC with adjustable range (24-28 V).
- 3High efficiency: 95% efficiency reduces energy consumption and heat development.
- 4Overload protection: Up to 150% of rated current for short periods, with shutdown and periodic restart attempts.
- 5Galvanic isolation: Ensures safety with extra-low output voltage according to EN 60950-1.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Rated Output Power | 480W | Input Voltage Range | AC 85-264V (DC 85-275V) |
Number of Power Phases | Single phase AC or DC | Rated Output Current | 20A |
Rated Output Voltage | DC 24V | Rated Input Voltage | AC 120-240V (DC 110-240V) |
Lifecycle | P.M300 | Country of Origin | Germany |
ECCN | N | AL | N |
Model Number | 6EP3336-7SB00-3AX0 |
Specifications may be subject to change without notice
