Product Model

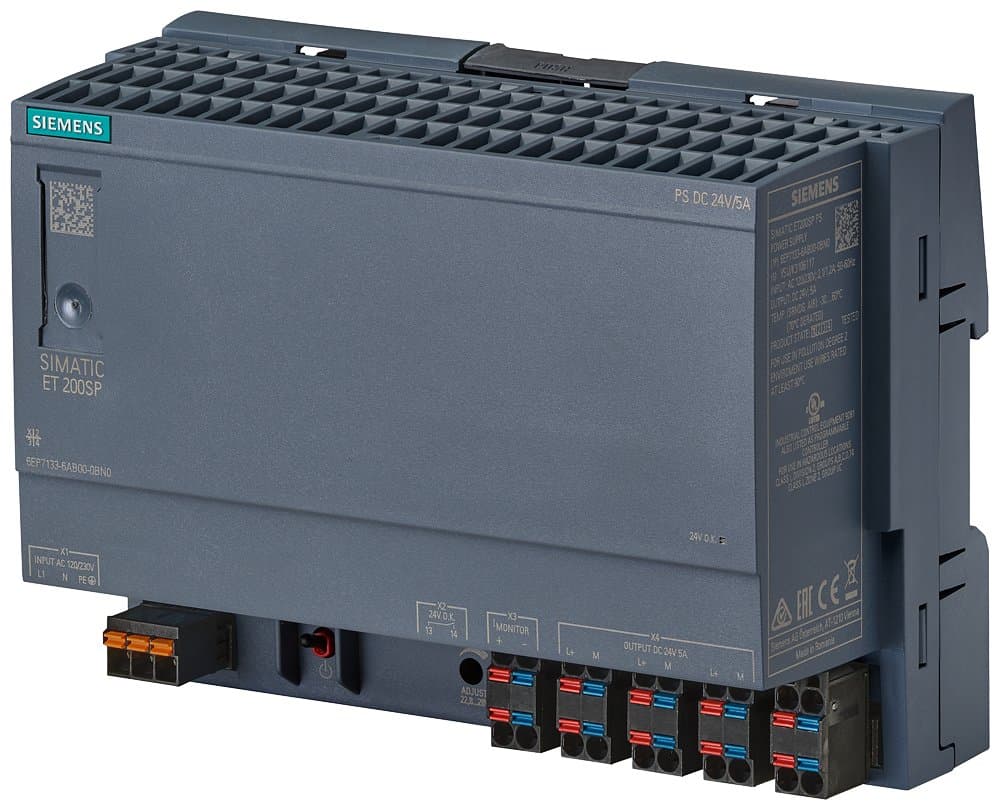

6EP7133-6AB00-0BN0
Selling Points
- 1Supports 120-230 V AC input with a range of 85-264 V AC.
- 2Offers an efficiency of 88% with minimal power loss.
- 3Provides a stable 24 V DC output with a relative control precision of 0.1% on slow input voltage fluctuations.
- 4Features overcurrent overload capability up to 150% of rated current for 5 seconds and short-circuit protection.
- 5Designed for ambient temperatures from -30°C to +70°C with IP20 protection rating.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Rated Output Power | 120W | Input Voltage Range | AC 85-132V/170-264V |
Number of Power Phases | Single Phase AC | Rated Output Current | 5A |
Rated Output Voltage | DC 24V | Rated Input Voltage | AC 120/230V |
Lifecycle | P.M300 | Country of Origin | Germany |
ECCN | N | AL | N |
Model Number | 6EP7133-6AB00-0BN0 |
Specifications may be subject to change without notice
