Product Model

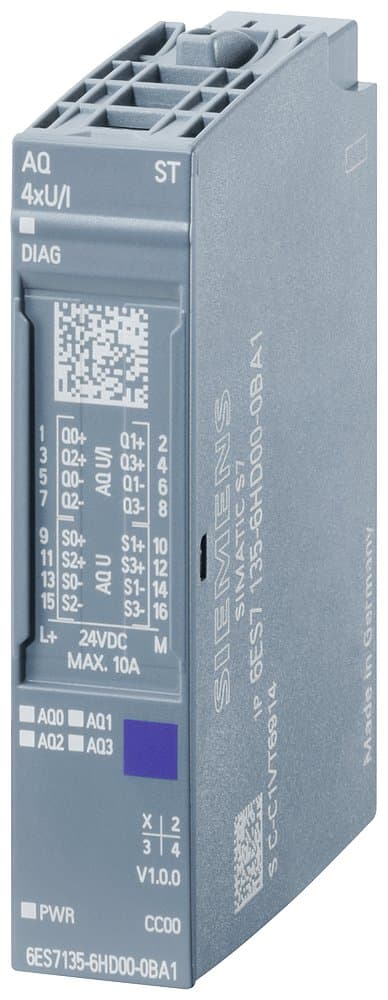

6ES7135-6HD00-0BA1
Selling Points
- 1Supports ±20 mA and ±10 V output ranges with resolutions up to 16 bits.
- 2Configurable via STEP 7 (TIA Portal) and GSD files for various distributed I/O configurations.
- 3Includes diagnostics for no supply voltage, short-circuit, overflow, underflow, and wire break.
- 4Measuring 73 mm in height and 15 mm in width, ideal for space-efficient installations.
- 5Compatible with ET 200SP Distributed I/O System and supports PROFINET IO and PROFIBUS DP protocols.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Packaging Quantity | 1 | Quantity Unit | 1 Piece |
Package size unit of measure | MM | Packaging Dimension | 150,00 x 200,00 x 30,00 |
Net Weight (kg) | 0,037 Kg | Estimated dispatch time (Working Days) | 20 Day/Days |
Export Control Regulations | AL : N / ECCN : N | Notes | Please enter text for every Y option (using the Configurator). |
Product Lifecycle (PLM) | PM300:Active Product | Product family | Actuators and indicators, 22 mm, round, plastic, black |
Product Description | Indicator lights, 22 mm, round, plastic, red, lens, smooth, with holder, LED module, with integrated LED 230 V AC, screw terminal, with laser labeling, inscription or symbol Customer-specific selection with SIRIUS ACT configurator (CIN) | Article Number (Market Facing Number) | 3SU1106-6AA20-1AA0-Z Y19 |
Specifications may be subject to change without notice
