Product Model

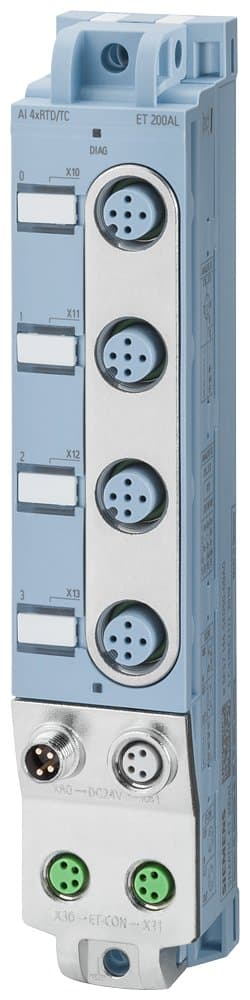

6ES7144-5KD50-0BA0
Selling Points
- 1Advanced Diagnostics: Configurable diagnostics for each channel with hardware interrupts on limit violations.
- 2High Accuracy: Meets AMS2750E standards with linearity error of ±0.025% and temperature error of ±0.01%/K.
- 3Versatile Connectivity: Supports voltage, resistance, and thermocouple measurements with 2-/3-/4-wire connections.
- 4Robust Design: IP67 protection and M12 sockets ensure reliable operation in harsh environments.
- 5Easy Integration: Compatible with STEP 7 TIA Portal from version V16 or higher, and PROFIBUS from GSD revision 5.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Packaging Quantity | 1 | Quantity Unit | 1 Piece |
Package size unit of measure | MM | Packaging Dimension | 150,00 x 200,00 x 30,00 |
Net Weight (kg) | 0,037 Kg | Estimated dispatch time (Working Days) | 20 Day/Days |
Export Control Regulations | AL : N / ECCN : N | Notes | Please enter text for every Y option (using the Configurator). |
Product Lifecycle (PLM) | PM300:Active Product | Product family | Actuators and indicators, 22 mm, round, plastic, black |
Product Description | Indicator lights, 22 mm, round, plastic, red, lens, smooth, with holder, LED module, with integrated LED 230 V AC, screw terminal, with laser labeling, inscription or symbol Customer-specific selection with SIRIUS ACT configurator (CIN) | Article Number (Market Facing Number) | 3SU1106-6AA20-1AA0-Z Y19 |
Specifications may be subject to change without notice
