Product Model

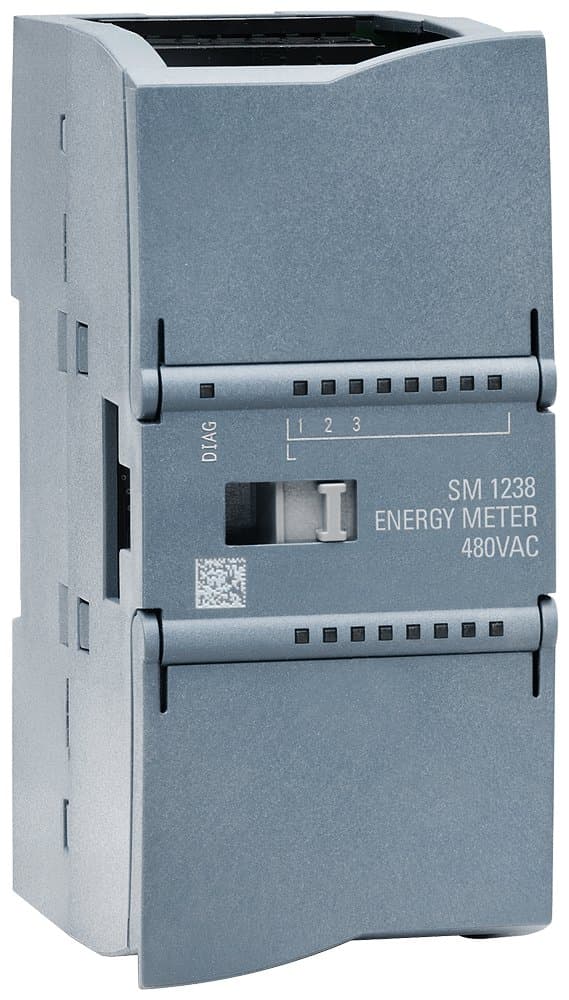

6ES7238-5XA32-0XB0
Selling Points
- 1Accurate Power Measurement: Measures voltage, current, phase angles, power, and energy values with high accuracy.
- 2Wide Application Range: Compatible with 1- and 3-phase supply systems up to 480 V AC, suitable for various industrial applications.
- 3Flexible Configuration: Configurable through STEP 7 TIA Portal from version V13 SP1, allowing for customized settings.
- 4Real-Time Data Acquisition: Cyclic and acyclic measurement capabilities with a cycle time of 50 ms for consistent data updates.
- 5Enhanced Safety Features: Compliant with IEC 61010-2-030 CAT II and CAT III standards, ensuring safe operation in industrial environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Packaging Quantity | 1 | Quantity Unit | 1 Piece |
Package size unit of measure | MM | Packaging Dimension | 150,00 x 200,00 x 30,00 |
Net Weight (kg) | 0,037 Kg | Estimated dispatch time (Working Days) | 20 Day/Days |
Export Control Regulations | AL : N / ECCN : N | Notes | Please enter text for every Y option (using the Configurator). |
Product Lifecycle (PLM) | PM300:Active Product | Product family | Actuators and indicators, 22 mm, round, plastic, black |
Product Description | Indicator lights, 22 mm, round, plastic, red, lens, smooth, with holder, LED module, with integrated LED 230 V AC, screw terminal, with laser labeling, inscription or symbol Customer-specific selection with SIRIUS ACT configurator (CIN) | Article Number (Market Facing Number) | 3SU1106-6AA20-1AA0-Z Y19 |
Specifications may be subject to change without notice
