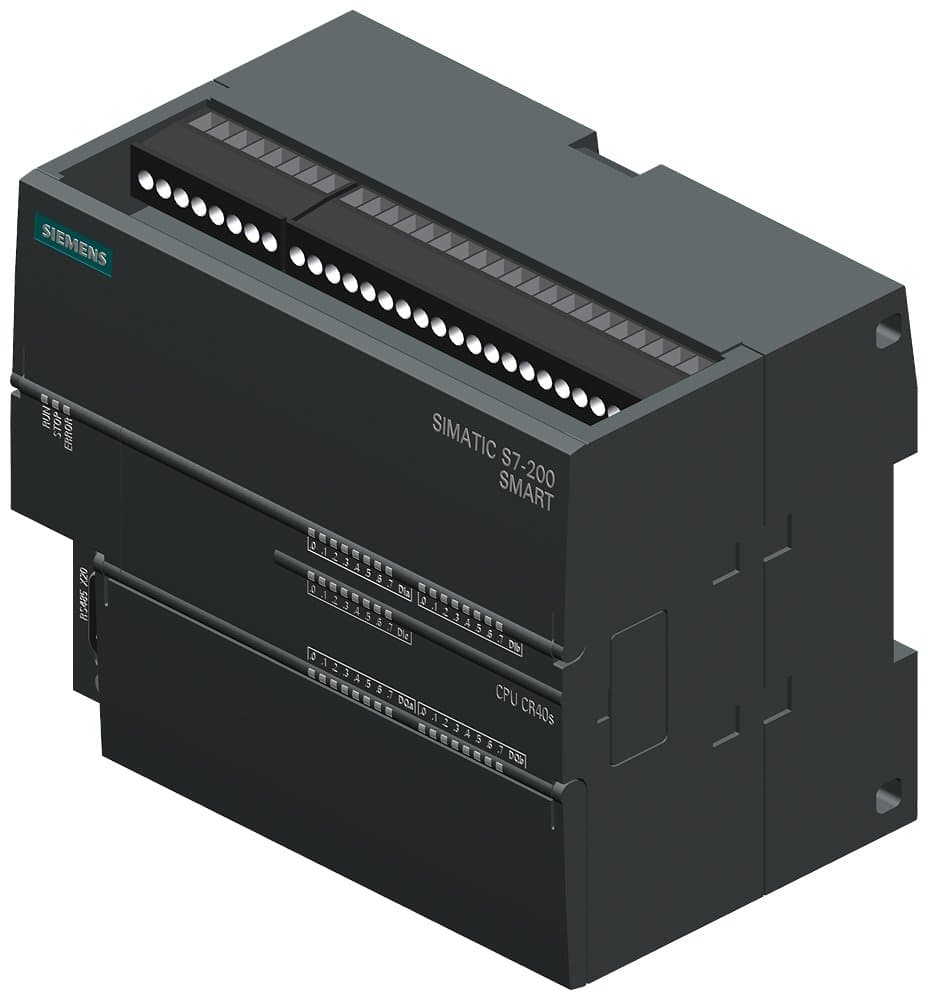

Product Model
6ES7288-1CR40-0AA0
Selling Points
- 124 Digital Inputs with 24 V DC: Supports up to 24 digital inputs with a rated voltage of 24 V DC.
- 216 Relay Outputs: Includes 16 relay outputs with a switching capacity of up to 2 A.
- 3Robust Ethernet Connectivity: Equipped with an isolated Ethernet interface supporting 10/100 Mbit/s and auto-negotiation.
- 4Compact Design: Rail mounting compatible, ideal for DIN rail installations.
- 5High-Speed Processing: Executes instructions in as little as 150 ns for bit operations and 1.2 µs for word operations.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Depth | 81mm | Height | 100mm |
Width | 125mm | PROFINET Interfaces | 1 |
Processor Speed (1K, binary operation) | 0.15ms | Digital Outputs | 16 |
Digital Inputs | 24 | Operating Voltage | 220V AC |
Model | CR40 | Type | Compact |
Product Type | CPU | Lifecycle | P.M300 |
Country of Origin | China | ECCN | EAR99H |
AL | N | Model Number | 6ES7288-1CR40-0AA0 |
Specifications may be subject to change without notice
