Product Model

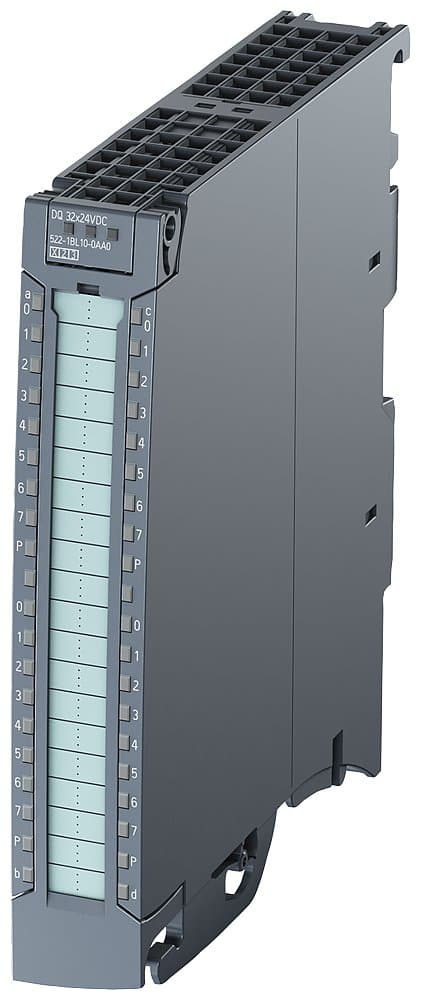

6ES7522-1BL10-0AA0
Selling Points
- 1High-Performance Digital Output Module: 32 channels with 24VDC/0.5A output.
- 2Safety-Oriented Shutdown: Supports shutdown up to SIL2 according to EN IEC 62061:2021.
- 3Configurable with STEP 7 TIA Portal: Integrated from version V13, compatible with V5.5 SP3.
- 4Energy-Efficient Design: Low power consumption, 1.15 W from backplane bus.
- 5Robust Diagnostics and Monitoring: Includes RUN, ERROR, and PWR LEDs for status indication.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Packaging Quantity | 1 | Quantity Unit | 1 Piece |
Package size unit of measure | MM | Packaging Dimension | 150,00 x 200,00 x 30,00 |
Net Weight (kg) | 0,037 Kg | Estimated dispatch time (Working Days) | 20 Day/Days |
Export Control Regulations | AL : N / ECCN : N | Notes | Please enter text for every Y option (using the Configurator). |
Product Lifecycle (PLM) | PM300:Active Product | Product family | Actuators and indicators, 22 mm, round, plastic, black |
Product Description | Indicator lights, 22 mm, round, plastic, red, lens, smooth, with holder, LED module, with integrated LED 230 V AC, screw terminal, with laser labeling, inscription or symbol Customer-specific selection with SIRIUS ACT configurator (CIN) | Article Number (Market Facing Number) | 3SU1106-6AA20-1AA0-Z Y19 |
Specifications may be subject to change without notice
