Product Model

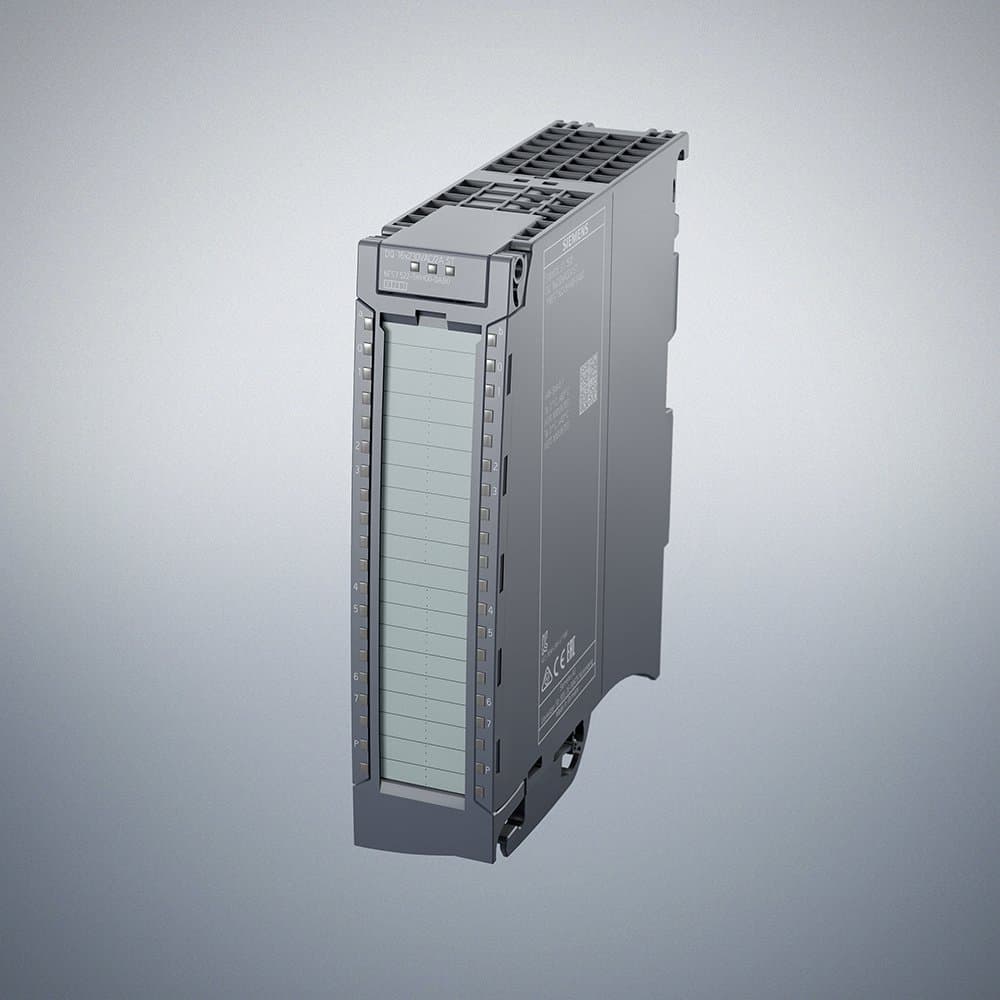

6ES7522-5HH00-0AB0
Selling Points
- 1Reliable Digital Output: 16 relay channels with 4 A per group, ensuring robust digital output operations.
- 2Integrated Diagnostics: Built-in switching cycle counter and diagnostics for efficient module monitoring.
- 3Safety-Oriented Design: Supports safety-oriented shutdown of load groups up to SIL1 according to EN IEC 62061:2021 and Category 2/PL c according to EN ISO 13849-1:2015.
- 4Versatile Connectivity: Compatible with STEP 7 from V5.5 SP3 and PROFINET from GSD version V2.3.
- 5Efficient Power Management: Power consumption from the backplane bus is 0.8 W, with a typical power loss of 5 W.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Packaging Quantity | 1 | Quantity Unit | 1 Piece |
Package size unit of measure | MM | Packaging Dimension | 150,00 x 200,00 x 30,00 |
Net Weight (kg) | 0,037 Kg | Estimated dispatch time (Working Days) | 20 Day/Days |
Export Control Regulations | AL : N / ECCN : N | Notes | Please enter text for every Y option (using the Configurator). |
Product Lifecycle (PLM) | PM300:Active Product | Product family | Actuators and indicators, 22 mm, round, plastic, black |
Product Description | Indicator lights, 22 mm, round, plastic, red, lens, smooth, with holder, LED module, with integrated LED 230 V AC, screw terminal, with laser labeling, inscription or symbol Customer-specific selection with SIRIUS ACT configurator (CIN) | Article Number (Market Facing Number) | 3SU1106-6AA20-1AA0-Z Y19 |
Specifications may be subject to change without notice
