Product Model

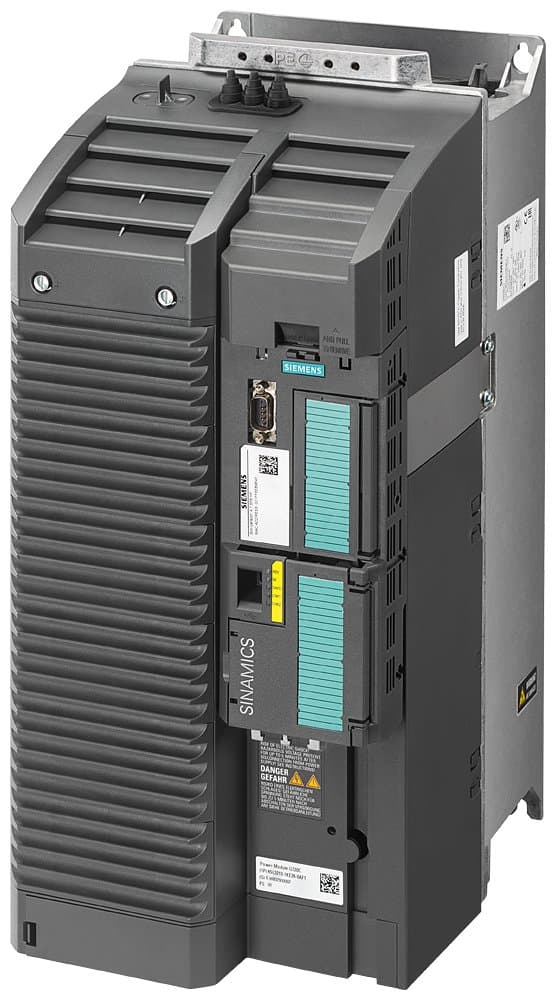

6SL3210-1KE28-4AF1
Selling Points
- 1Equipped with precise energy-optimized vector control (SLVC) and automatic flux reduction for enhanced efficiency.
- 2Covers a performance range of 0.55 to 132 kW in seven frame sizes.
- 3Supports PROFINET-PN and PROFIsafe protocols for seamless integration into industrial networks.
- 4Ideal for various applications like conveyor belts, mixers, pumps, fans, and compressors.
- 5Integrated safety function ensures safe operation with no external components required.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Depth | 237mm | Height | 472mm |
Width | 200mm | Analog Outputs | 1 |
Analog Inputs | 1 | Digital Outputs | 2 |
Digital Inputs | 6 | Protection Rating | IP20 |
Size | FSD | Input Phases | 3 |
Filter | Integrated Class A Filter | Motor Power | 45.0kW |
Rated Voltage | 380-480V | Product Type | Inverter |
Lifecycle | Delivery Release (PM300) | Country of Origin | China |
ECCN | 9N9999 | AL | 9I999KP |
Model Number | 6SL3210-1KE28-4AF1 |
Specifications may be subject to change without notice
