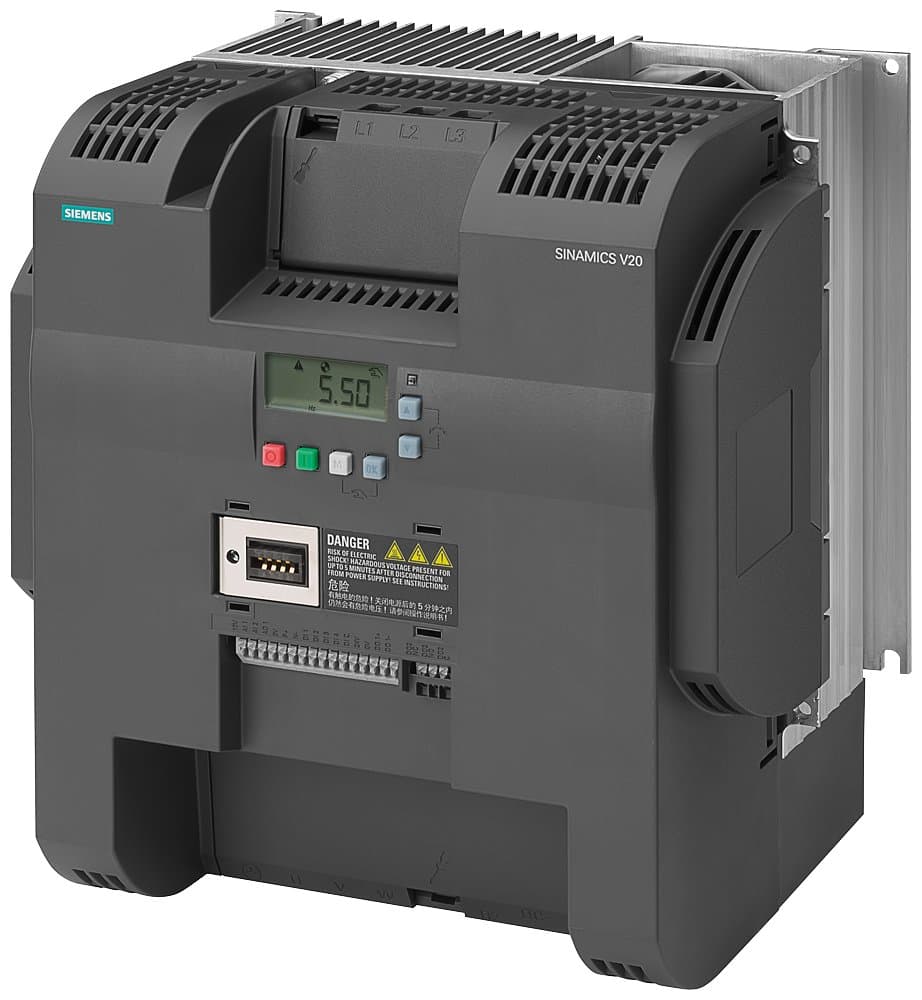

Product Model
6SL3210-5BE32-2CV0
Selling Points
- 1Rated power of 22 kW with 150% overload for 60 seconds.
- 2Integrated filter C3 I/O with 4 DI, 2 DO, 2 AI, and 1 AQ.
- 3Built-in BOP protection and IP20/ UL open size.
- 4Supports USS and MODBUS RTU protocols.
- 5Efficiency of 0.98 with a power factor of 0.72.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Depth | 209mm | Height | 264.5mm |
Width | 245mm | Digital Outputs | 2 |
Digital Inputs | 4 | Protection Rating | IP20 |
Size | FSE | Output Phases | 3 |
Input Phases | 3 | Power Phases | 3AC |
Filter | Filter C3 | Motor Power | 22kW |
Rated Voltage | 380-480V | Product Type | Inverter |
Lifecycle | Delivery Release (PM300) | Country of Origin | China |
ECCN | N | AL | N |
Model Number | 6SL3210-5BE32-2CV0 |
Specifications may be subject to change without notice
