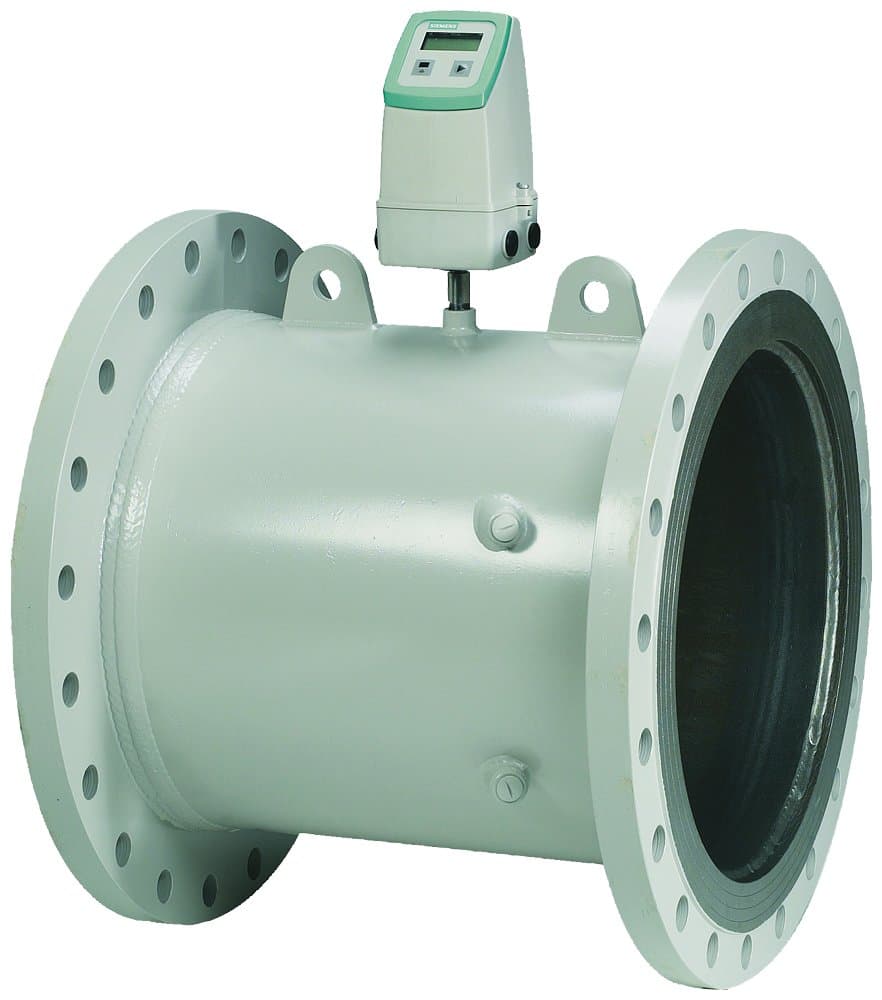

Product Model
7ME3410-3UC31-6EC2
Selling Points
- 1Accurately measures volume flow and thermal energy of liquids.
- 2Compliant with custody transfer regulations for district heating and local networks.
- 3Compatible with DN 50 to DN 1200 (2" to 48") diameters.
- 4Offers flexibility with both battery and mains supply options.
- 5Features a display indicating various measurement values and diagnostics for efficient operation.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Temperature Resistance | Separate type, temperature resistance up to 200°C | Separate Cable Length | 10 m |
Output | Pulse output: 100L/p; pulse width 5ms | Power Supply | 220VAC with 3.6V backup battery + X7:AB7X7:AA7 |
Electrical Interface | M20x1.5 | Protection Rating | Sensor IP67, transmitter IP65, separate type, non-explosion proof |
Flange and Pressure Rating | Flange standard EN1092-1, pressure rating PN16 | Size and Flow Range | DN600, material carbon steel, nominal flow rate Qp=2150m³/h, maximum flow rate Qs=6020m³/h, minimum flow rate Qi=43m³/h |
Product Series | SITRANS FUE 380 | Product Type | Ultrasonic Flow Meter |
Lifecycle | Delivery Release (PM300) | Country of Origin | China |
ECCN | N | AL | N |
Model Number | 7ME3410-3UC31-6EC2 |
Specifications may be subject to change without notice
