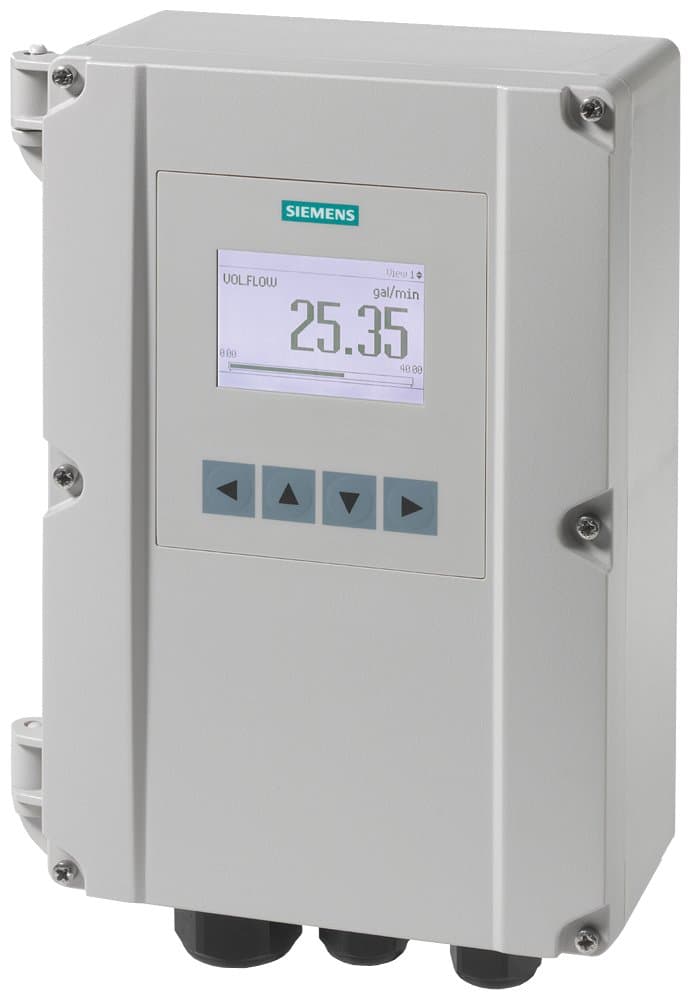

Product Model
7ME3570-1JB40-0EQ1-ZS30
Selling Points
- 1No pipe cutting or flow stops required.
- 2External sensors remain clean and require less upkeep.
- 3No moving parts ensure long-lasting performance.
- 4Wide turn-down ratio and bidirectional flow measurement.
- 5Automatic compensation for non-ideal pipe runs and backflow.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Medium Temperature | -40°C … 120°C | Separate Cable | 2*10 m |
Output | Modbus, 4-20mA, pulse, switch | Power Supply | 24VDC |
Protection Rating | Transmitter IP65,
Separate, non-explosion proof | Sensor Type | Sensor D3
Applicable pipe outer diameter 203-610mm |
Product Series | SITRANS FS 220 | Product Type | Ultrasonic Flow Meter |
Lifecycle | Delivery Release (PM300) | Country of Origin | Germany |
ECCN | EAR99H | AL | N |
Model Number | 7ME3570-1JB40-0EQ1-ZS30 |
Specifications may be subject to change without notice
