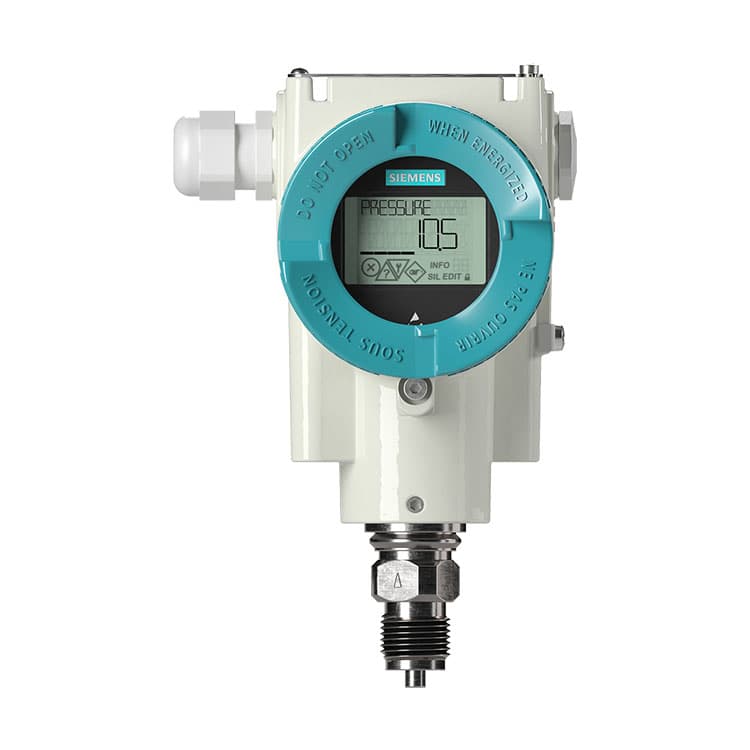

Product Model
7MF0300-1FE01-5AF2-ZA00E00H01Y01
Selling Points
- 1Measures gauge pressure with a maximum measuring span of 63 bar (914 psi) using silicone oil.
- 2Constructed with stainless steel 316L/1.4404 for process connections and seal diaphragms.
- 3Compatible with HART (4...20 mA) for easy parameterization and diagnostics.
- 4No Ex zone, with two M20 x 1.5 connections and a die-cast aluminum housing.
- 5General approval without Ex approval in the world (CE, UKCA, RCM) except for CSA, EAC, FM, and KC.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Parameter Adjustment Keys Included | Yes | Protection Rating | IP66 |
Power Supply | 10.5 … 45 V DC | Environmental Temperature Range | -40 … 85℃ |
Process Temperature Range | -40 … 100℃ | Medium Type | Corrosive and Non-Corrosive Gases, Liquids, and Steam |
Bracket | Carbon Steel Bracket | Display Included | Yes |
Cable and Plug Material | Plastic | Electrical Connection | M20*1.5 |
Explosion Protection Type | Non-Explosion Proof | Enclosure Material | Cast Aluminum |
Wetted Material | 316L Stainless Steel | Process Connection | 1/2-14 NPT Internal Thread |
Measurement Range | 0 … 25 kPa | Filling Liquid | Silicone Oil |
Communication Type | HART 7 | Accuracy | 0.065% |
Product Series | SITRANS P320 Intelligent Pressure Transmitter | Lifecycle | Delivery Release (PM300) |
Country of Origin | China | ECCN | 3A991X |
AL | N | Model Number | 7MF0300-1FE01-5AF2-ZA00E00H01Y01 |
Specifications may be subject to change without notice
