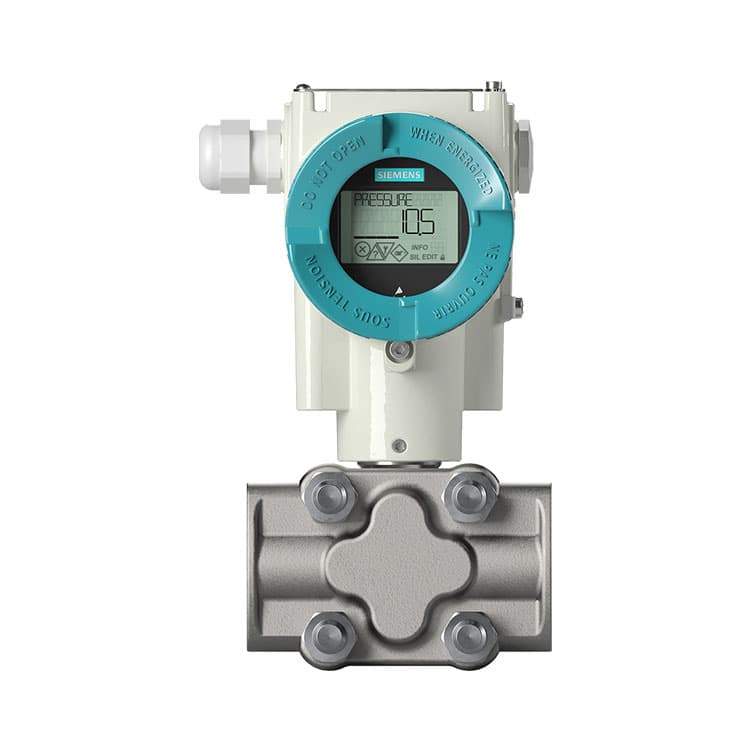

Product Model
7MF0340-1DM01-5AF2-ZA00E00H01K84Y01
Selling Points
- 1High Accuracy: Measures differential pressure and flow with precision, ensuring reliable data.
- 2Durable Construction: Made with stainless steel 316L/1.4404 for long-lasting performance.
- 3HART Communication: Supports HART (4...20 mA) protocol for easy integration with control systems.
- 4Silicone Oil Filling: Measuring cell filled with silicone oil for optimal performance in various environments.
- 5Global Approval: Compliant with CE, UKCA, and RCM standards, ensuring global use without Ex approval issues.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Parameter Adjustment Key | With | Protection Rating | IP66 |
Power Supply | 10.5…45 V DC | Environmental Temperature Range | -40…85°C |
Process Temperature Range | -40…100°C | Medium Type | Corrosive and Non-Corrosive Gases, Liquids, and Steam |
Venting and Drain Valve | With | Bracket | Carbon Steel Bracket |
Display | With | Cable and Plug Material | Plastic |
Electrical Connection | M20*1.5 | Explosion Protection Type | Non-Explosion Proof |
Enclosure Material | Cast Aluminum | Wetted Material | 316L Stainless Steel |
Process Connection | 1/4-18 NPT Internal Thread | Measurement Range | 0…6 kPa |
Filling Liquid | Silicone Oil | Maximum Allowable Operating Pressure | 16 MPa |
Communication Type | HART 7 | Accuracy | 0.065% |
Product Series | SITRANS P320 Intelligent Pressure Transmitter | Lifecycle | Delivery Release (PM300) |
Country of Origin | China | ECCN | 3A991X |
AL | N | Model Number | 7MF0340-1DM01-5AF2-ZA00E00H01K84Y01 |
Specifications may be subject to change without notice
