Product Model
7MF0350-1HM01-5AF2-ZA00B35E12H01Y01Y15
Selling Points

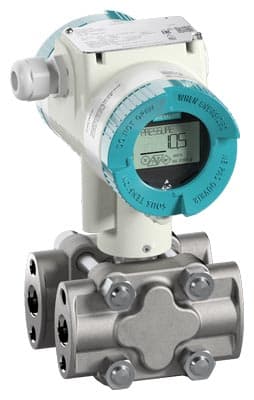

- 1The SITRANS P320 Pressure Transmitter provides accurate measurements with a maximum measuring span of 600 mbar.
- 2Equipped with HART (4...20 mA) communication, ensuring seamless integration with various control systems.
- 3Built with stainless steel 316L/1.4404 for durability and resistance to corrosion.
- 4Features a dual chamber device without explosion-proof (Ex) approval, enhancing safety and ease of use.
- 5Meets global standards including CE, UKCA, and RCM approvals, making it suitable for worldwide use.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Parameter Adjustment Keys | With | Protection Rating | IP66 |
Power Supply | 10.5…45 V DC | Environmental Temperature Range | -40…85℃ |
Process Temperature Range | -40…100℃ | Medium Type | Corrosive and Non-Corrosive Gases, Liquids, and Steam |
Vent Valve | Without | Bracket | Carbon Steel Bracket |
Display | With | Cable and Plug Material | Plastic |
Electrical Connection | M20*1.5 | Explosion Protection Type | Non-Explosion Proof |
Enclosure Material | Cast Aluminum | Wetted Material | 316L Stainless Steel |
Process Connection | 1/4-18 NPT Internal Thread | Measurement Range | 0…60 kPa |
Filling Liquid | Silicone Oil | Maximum Allowable Operating Pressure | 42 MPa |
Communication Type | HART 7 | Accuracy | 0.065% |
Product Series | SITRANS P320 Intelligent Pressure Transmitter | Lifecycle | Delivery Release (PM300) |
Country of Origin | China | ECCN | 3A991X |
AL | N | Model Number | 7MF0350-1HM01-5AF2-ZA00B35E12H01Y01Y15 |
Specifications may be subject to change without notice
