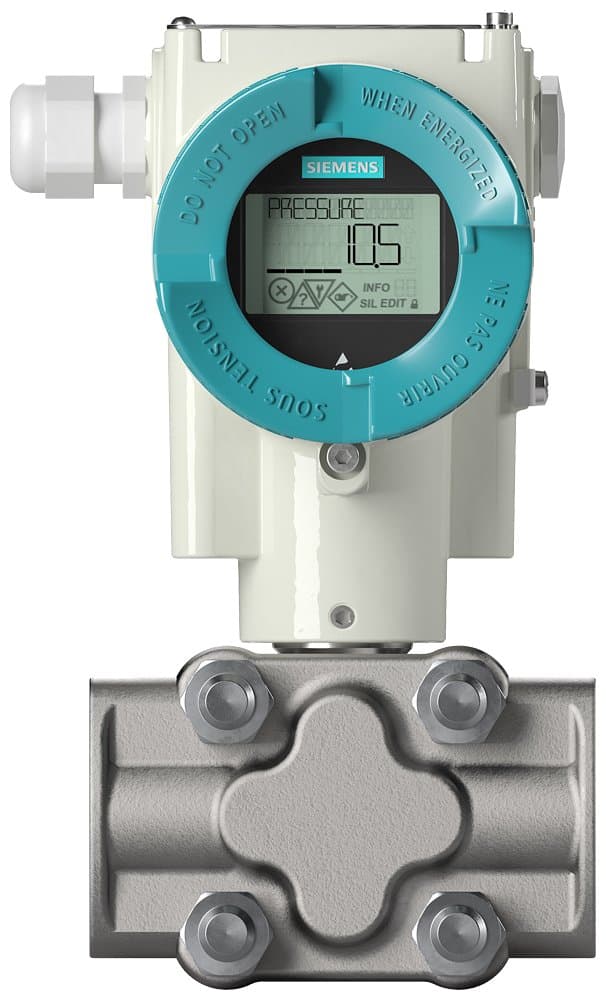

Product Model
7MF0440-1BM01-5AF2-ZA00E00H02K84Y01Y15
Selling Points
- 1Precision Measurement: Accurately measures differential pressure and flow with a maximum measuring span of 600 mbar.
- 2HART Communication: Compatible with HART (4...20 mA) for seamless integration into industrial control systems.
- 3Silicone Oil Filling: Measuring cell filled with silicone oil for reliable and consistent measurements.
- 4Stainless Steel Construction: Process connection and seal diaphragms made of stainless steel 316L/1.4404 for durability.
- 5Dual Chamber Design: Die-cast aluminum housing with a dual chamber device for enhanced performance and safety.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Parameter Adjustment Key | With | Protection Rating | IP66 |
Power Supply | 10.5 … 45 V DC | Environmental Temperature Range | -40 … 85℃ |
Process Temperature Range | -40 … 100℃ | Medium Type | Corrosive and Non-Corrosive Gases, Liquids, and Steam |
Venting and Drain Valve | With | Bracket | Stainless Steel Bracket |
Display | With | Cable and Plug Material | Plastic |
Electrical Connection | M20*1.5 | Explosion Protection Type | Non-Explosion Proof |
Enclosure Material | Cast Aluminum | Wetted Material | 316L Stainless Steel |
Process Connection | 1/4-18 NPT Internal Thread | Measurement Range | 0 … 2 kPa |
Filling Liquid | Silicone Oil | Maximum Allowable Operating Pressure | 16 MPa |
Communication Type | HART 7 | Accuracy | 0.0004 |
Product Series | SITRANS P420 Intelligent Pressure Transmitter | Lifecycle | Delivery Release (PM300) |
Country of Origin | Germany | ECCN | EAR99H |
AL | N | Model Number | 7MF0440-1BM01-5AF2-ZA00E00H02K84Y01Y15 |
Specifications may be subject to change without notice
