Product Model
7MF1575-1DA10
Selling Points

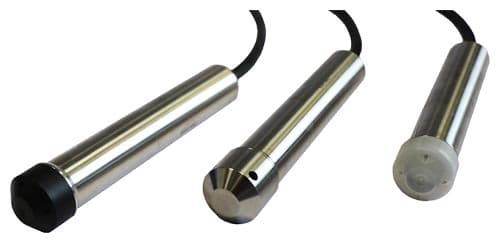

- 1The 7MF1575-1DA10 transmitter provides precise measurements of hydrostatic levels using Al2O3 ceramics.
- 2Designed for submersion in liquids, ensuring reliable operation in various industrial applications.
- 3Simplifies installation with a two-wire connection, reducing complexity and cost.
- 4Standard 4-20 mA output signal compatible with most industrial control systems.
- 5Built with stainless steel 316L (1.4404) for durability and resistance to corrosion.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Protection Rating | IP68 | Power Supply | 10 … 33 V DC |
Environmental Temperature Range | -10 … 80℃ | Operating Temperature Range | -10 … 80℃ |
Housing Material | Stainless Steel 316L | Diaphragm Material | Ceramic |
Medium Type | Liquid | Sealing Material Between Sensor and Housing | Fluorocarbon Rubber FKM |
Explosion Protection Type | Non-Explosion Proof | Output Signal | 4 ... 20 mA |
Measuring Range | 0 … 4 mH2O | Accuracy | 0.0015 |
Product Series | SITRANS LH300 Hydrostatic Level Transmitter | Lifecycle | Delivery Release (PM300) |
Country of Origin | Germany | ECCN | N |
AL | N | Model Number | 7MF1575-1DA10 |
Specifications may be subject to change without notice
