INDCTL Logo
SiemensIndustrial Weighing
Product Model

7MH5122-5FD00

Manufacturer

Siemens

Category

Industrial Weighing

Product ID

177956

In Stock
Last updated: 2025/4/18
View Specifications

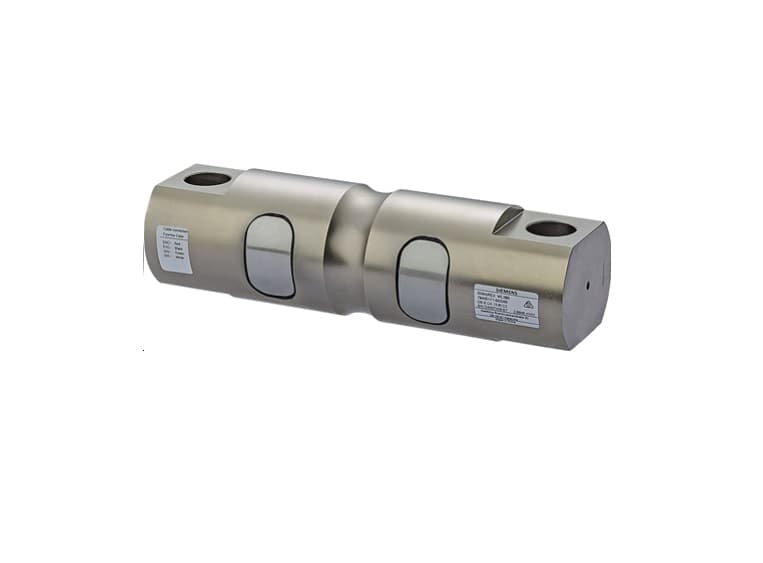

Siemens 7MH5122-5FD00

Selling Points

  • 1High accuracy class C3 for precise measurements.
  • 2Rated load of 18 tons for heavy-duty applications.
  • 3OIML R60 certified for compliance in weight measurement standards.
  • 49M cable with 4 conductors for easy integration.
  • 5Durable design for long-lasting performance in industrial environments.
Product Details
7MH5122-5FD00
Siemens

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Cable Length
9 meters
Height
76.2mm
Depth
76.2mm
Width
260.4mm
Protection Level
IP67
Accuracy Class
C3
Explosion Protection
Explosion-proof (Optional)
Suitable Applications
Platform Scale Hopper Scale Railway Scale
Material
Alloy Steel
Capacity Range
2.3t to 113t
Model Series
WL290 DB-S CA
Form
Double Shear Beam
Lifecycle
Delivery Release (PM300)
Country of Origin
Germany
ECCN
N
AL
N
Model Number
7MH5122-5FD00

Specifications may be subject to change without notice
