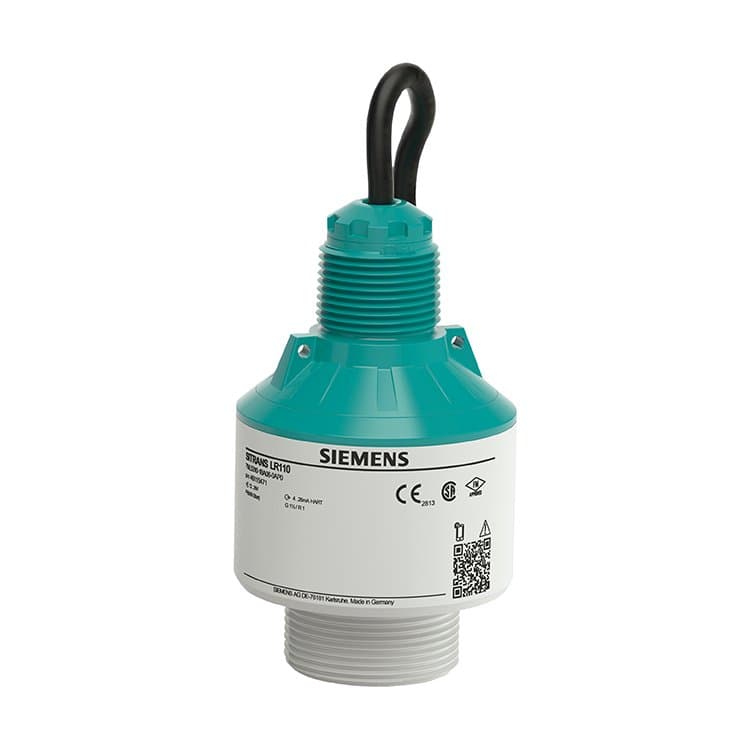

Product Model
7ML5310-0CA06-0AA0
Selling Points
- 1Continuous Level Monitoring: Measures liquids, slurries, and solids up to 49.2 feet (15 meters) with zero blanking distance.
- 2Non-Contact Measurement: Uses radar technology for non-invasive level monitoring.
- 3HART and Bluetooth Communications: Supports HART (4-20 mA) and Bluetooth for easy configuration and diagnostics.
- 4Hermetically Sealed PVDF Enclosure: Provides IP66/IP68 protection against harsh environments.
- 5Wide Application Range: Suitable for process temperatures to 176°F (80°C) and pressures to 43.5 PSIG.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Process Connection | 1-1/2\ | Fixed Cable Length | 30 meters |
Probe Structure and Material | Fully potted PVDF seal | Lifecycle | Delivery Release (PM300) |
Country of Origin | Germany | ECCN | N |
AL | N | Model Number | 7ML5310-0CA06-0AA0 |
Specifications may be subject to change without notice
