Product Model
7ML5431-5QC20-0SA1
Selling Points
- 1Continuous monitoring of liquids and slurries up to 66 feet (20 meters).
- 2High temperature resistance up to 392°F (200°C) and pressure up to 580 PSIG.
- 325 GHz pulse radar technology for accurate level measurement.
- 4Available with SIL2 Functional Safety certificate for critical applications.
- 5Compatible with 4-20 mA and HART communications for seamless integration.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Pressure Range | 0.5 bar | Explosion Protection Certification | Non-explosion proof |
Antenna Type | 3" mirror antenna | Enclosure and Electrical Connection | Aluminum / 1/2"NPT |
Communication Method | 4~20mA/HART | Process Seal Type | DN80PN16 general flange |

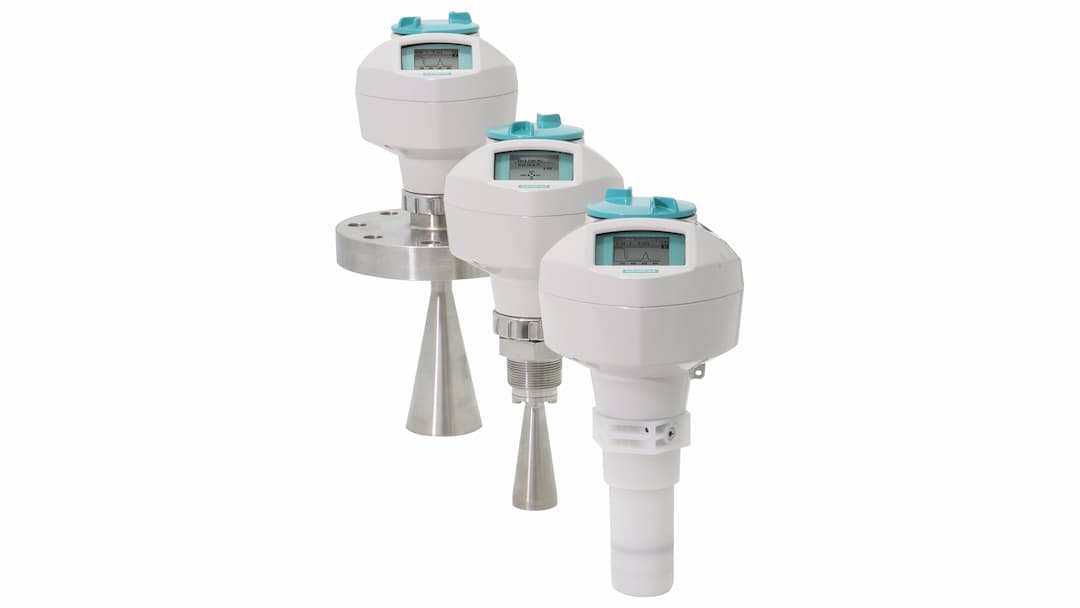

Signal Antenna | 3" aluminum horn | Product Series | SITRANS LR250 |
Lifecycle | Delivery Release (PM300) | Country of Origin | Germany |
ECCN | EAR99 | AL | N |
Model Number | 7ML5431-5QC20-0SA1 |
Specifications may be subject to change without notice
