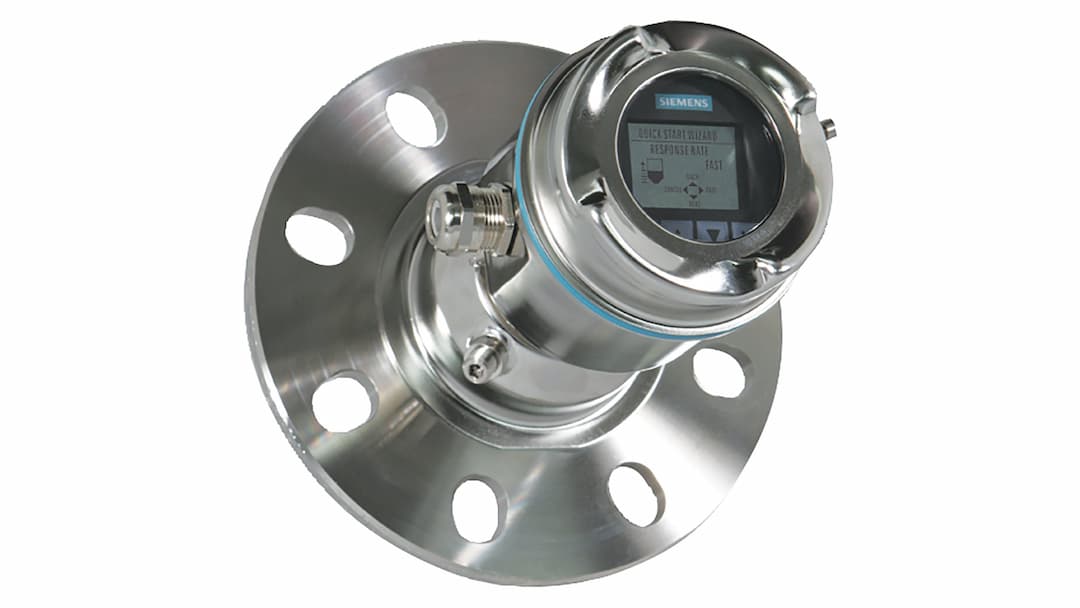

Product Model
7ML5440-1HA00-1AC2
Selling Points
- 1Continuous, non-contact radar level measurement.
- 2Local display interface for easy monitoring.
- 3Measurement range up to 100 meters (328 ft).
- 4Universal flat-faced flange fits ANSI/DIN/JIS flanges.
- 5Stainless Steel enclosure with 1/2" NPT and 7.5 PSIG pressure rating.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Local Display | With an LCD display | Explosion Protection Certification | Dust Intrinsically Safe + Gas Explosion Proof |
Communication Method | 4~20mA/HART | Pressure Resistance Range | 3 bar |
Enclosure and Electrical Interface | Stainless steel, 1/2"NPT | Process Connection | 4" flange with a targeting design |
Range and Temperature Resistance | 100 meters, -40~200°C | Product Series | SITRANS LR560 |
Product Lifecycle | Delivery Release (PM300) | Origin Country | Canada |
ECCN | EAR99 | AL | N |
Model Number | 7ML5440-1HA00-1AC2 |
Specifications may be subject to change without notice
