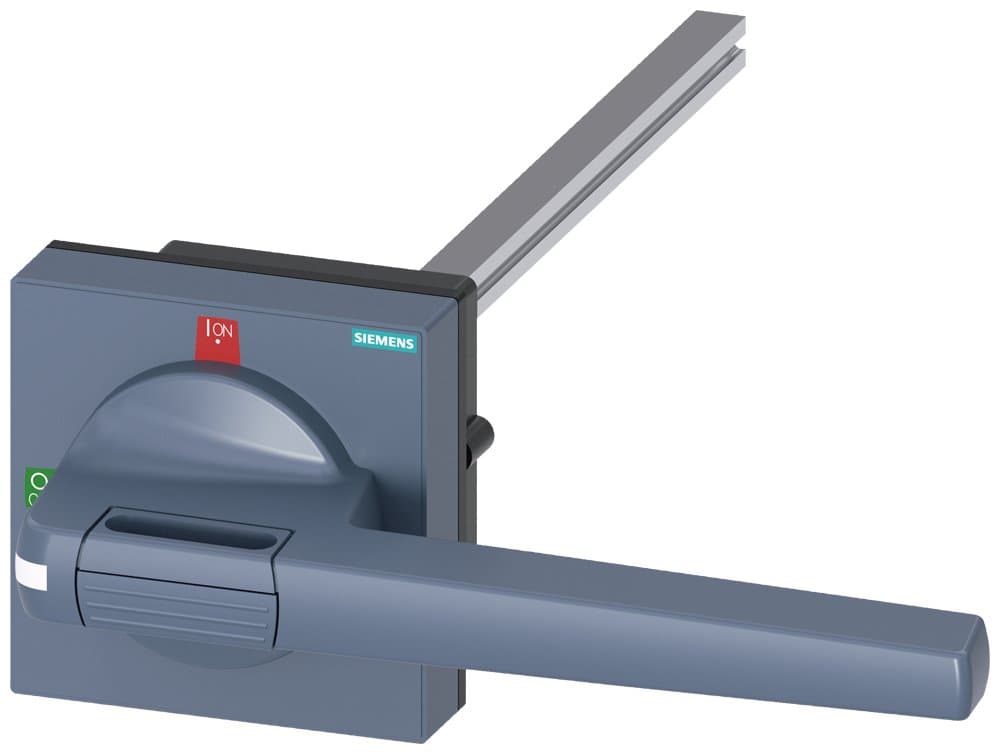

Product Model
8UD1161-4AF21
Selling Points
- 1Precise Door Control: Ensures smooth and reliable door operation with tolerance compensation.
- 2Standard Size: Measures 100x100 mm with a 12x12 mm shaft, 300 mm length.
- 3Complete Unit: Includes all necessary components for a complete operating mechanism.
- 4Handle Size: Features a 200 mm handle for easy operation.
- 5Accessory Compatibility: Compatible with 3KD size 5 and 3KF size 5 accessories.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Packaging Quantity | 1 | Quantity Unit | 1 Piece |
Package size unit of measure | MM | Packaging Dimension | 150,00 x 200,00 x 30,00 |
Net Weight (kg) | 0,037 Kg | Estimated dispatch time (Working Days) | 20 Day/Days |
Export Control Regulations | AL : N / ECCN : N | Notes | Please enter text for every Y option (using the Configurator). |
Product Lifecycle (PLM) | PM300:Active Product | Product family | Actuators and indicators, 22 mm, round, plastic, black |
Product Description | Indicator lights, 22 mm, round, plastic, red, lens, smooth, with holder, LED module, with integrated LED 230 V AC, screw terminal, with laser labeling, inscription or symbol Customer-specific selection with SIRIUS ACT configurator (CIN) | Article Number (Market Facing Number) | 3SU1106-6AA20-1AA0-Z Y19 |
Specifications may be subject to change without notice
