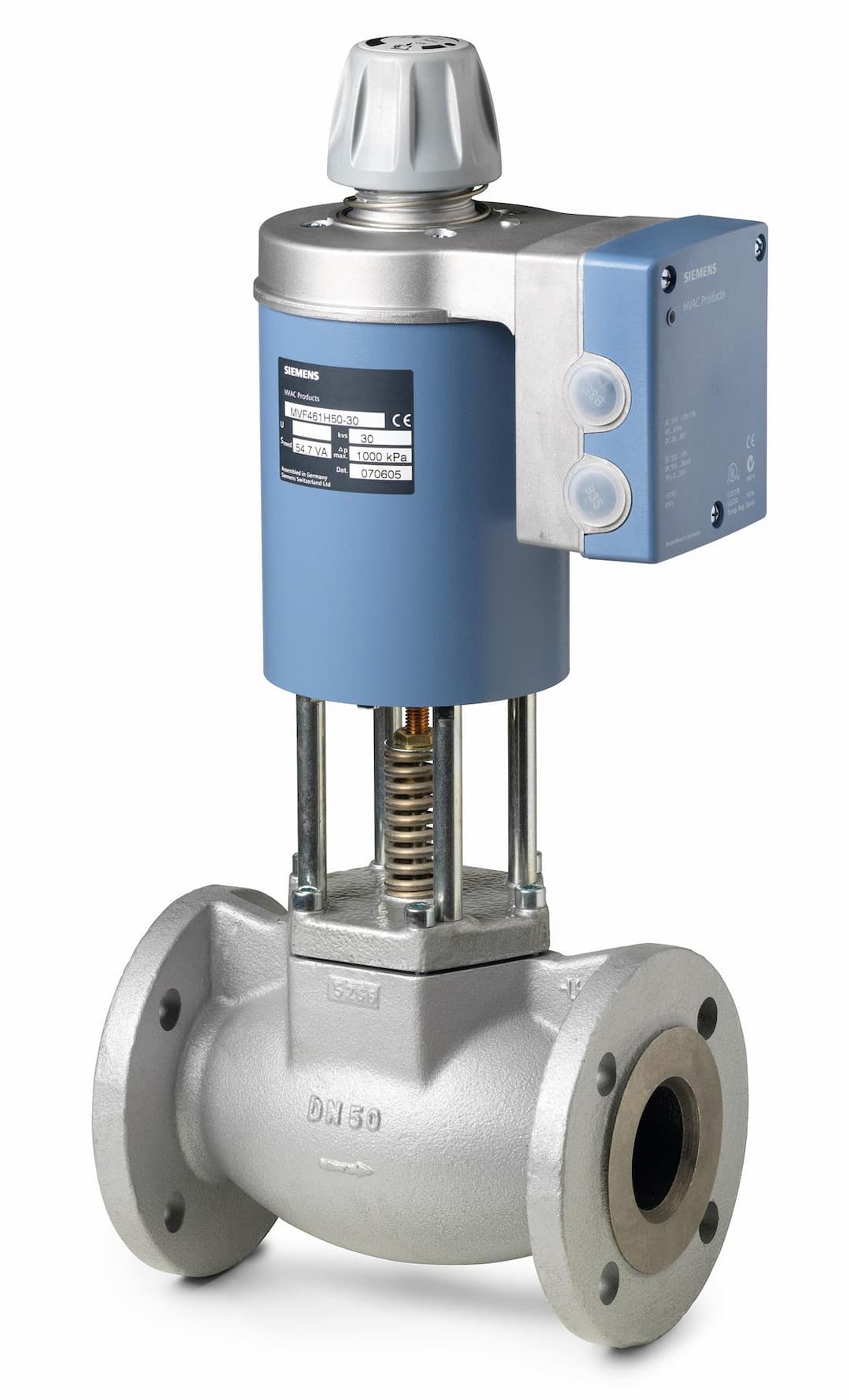

Product Model
BPZ:MVF461H15-3
Selling Points
- 1Precise Modulation Control: Offers precise control over hot water and steam flow.
- 2High-Temperature Capability: Suitable for high-temperature applications.
- 3Spring Return Magnetic Actuator: Ensures reliable operation with a spring return mechanism.
- 4Versatile Power Options: Compatible with AC/DC 24V and DC 0/2...10V / 0/4...20 mA signals.
- 5Compact Design: Available in DN15 flange size with PN16 rating for efficient installation.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Leakage Rate | 0.05% of kvs | Operating Range | DC 0…10 V; 0…20 mA; DC 2…10 V; 4…20 mA |
Operating Voltage | AC 24 V; DC 24 V | Positioning Time | DC 0...10 V; DC 0...20 mA; DC 2...10 V; DC 4...20 mA; DC 0...20 V Phs |
Positioning Signal | DC 0...10 V; DC 0...20 mA; DC 2...10 V; DC 4...20 mA; DC 0...20 V Phs | Installation Position | Vertical to the horizontal plane |
Power Consumption | 33 VA | Permissible Operating Pressure | Liquid, max: 1300 kPa; Steam, max: 900 kPa |
Lifecycle | P.M300 | Country of Origin | Switzerland |
ECCN | N | AL | N |
Model Number | BPZ:MVF461H15-3 |
Specifications may be subject to change without notice
