Product Model

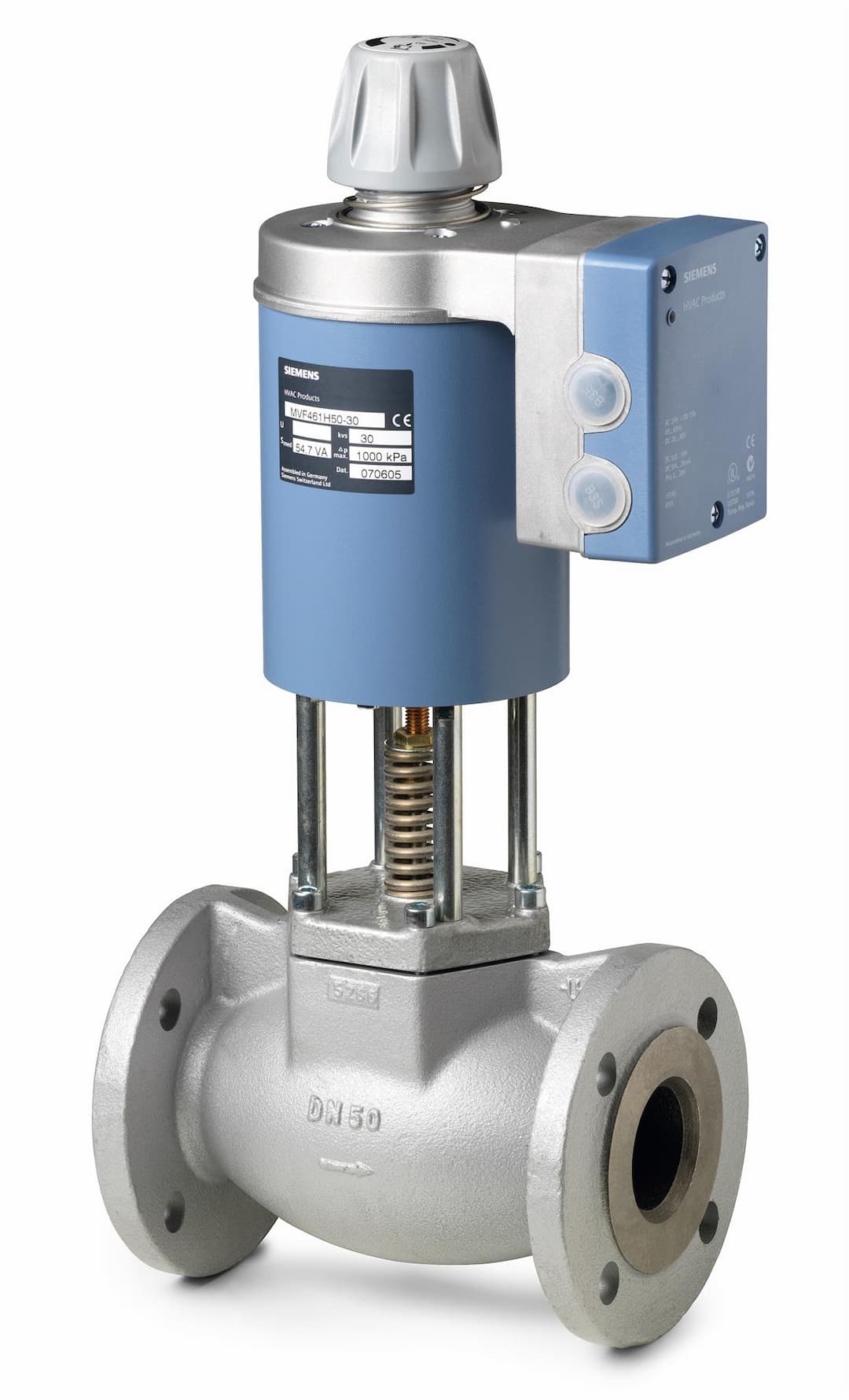

BPZ:MVF461H50-30
Selling Points
- 1High precision control for hot water and steam.
- 2Fast positioning time (< 2 seconds) for quick response.
- 3Selectable standard interfaces for easy integration.
- 4Wear-free inductive stroke measurement for durability.
- 5Spring return fails closed for safe operation.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Leakage Rate | 0.05% of kvs | Operating Range | DC 0…10 V; 0…20 mA; DC 2…10 V; 4…20 mA |
Operating Voltage | AC 24 V; DC 24 V | Positioning Time | DC 0...10 V; DC 0...20 mA; DC 2...10 V; DC 4...20 mA; DC 0...20 V Phs |
Positioning Signal | DC 0...10 V; DC 0...20 mA; DC 2...10 V; DC 4...20 mA; DC 0...20 V Phs | Installation Position | Vertical to the horizontal plane |
Power Consumption | 65 VA | Permissible Operating Pressure | Liquid, max: 1300 kPa; Steam, max: 900 kPa |
Lifecycle | P.M300 | Country of Origin | Switzerland |
ECCN | N | AL | N |
Model Number | BPZ:MVF461H50-30 |
Specifications may be subject to change without notice
