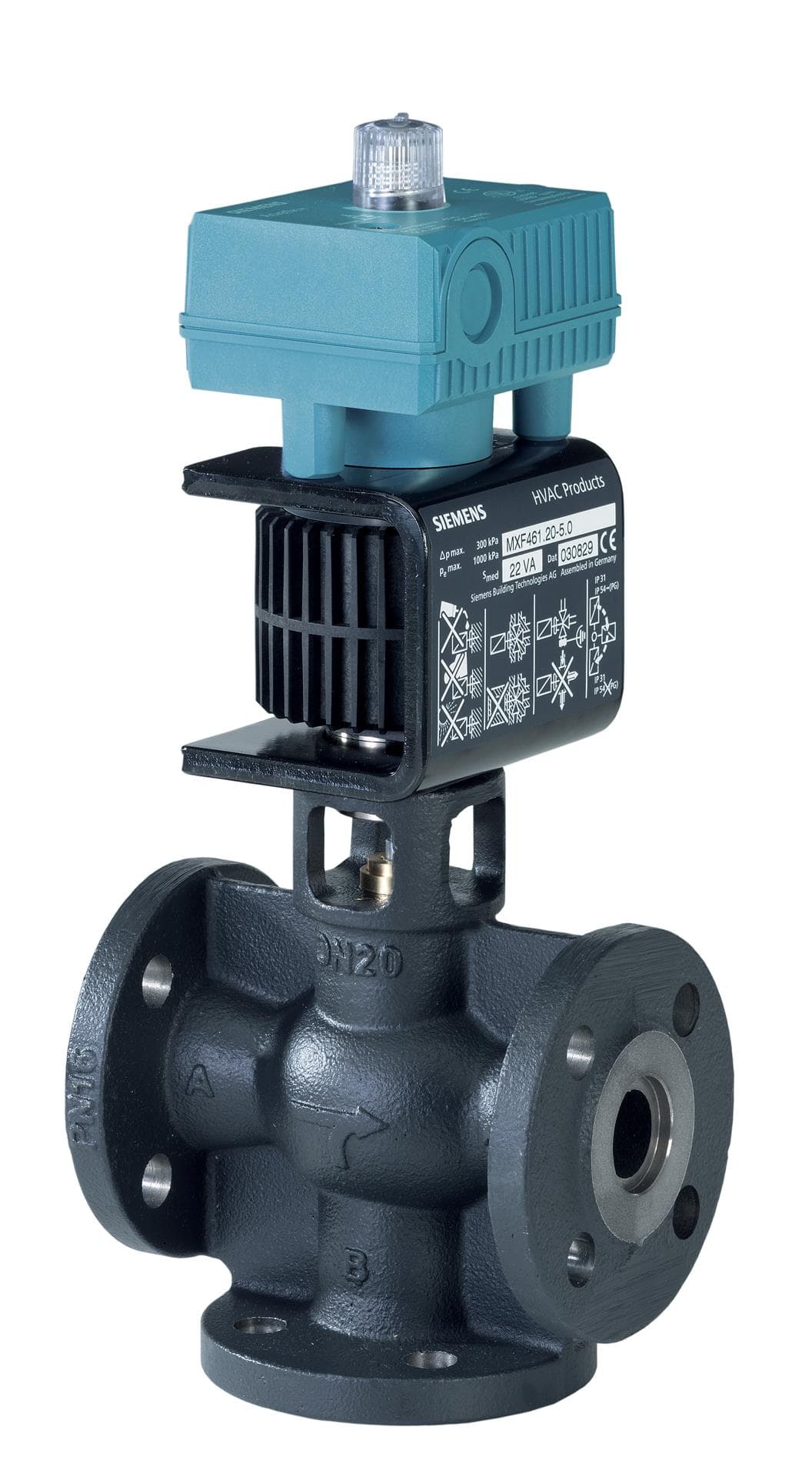

Product Model
BPZ:MXF461.15-1.5
Selling Points
- 1Precise Temperature Control: Modulates high-temperature hot water or steam with magnetic actuator.
- 2Positioning Control: Features positioning control and position feedback signal for precise control.
- 3Spring Return Function: Includes spring return function for reliable operation.
- 4Manual Control: Offers manual control for easy adjustment and troubleshooting.
- 5High-Quality Construction: Built with durable components, ensuring long-lasting performance in demanding environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Leakage Rate | 0.02% of kvs | Bypass Leakage Rate | 0.2% of kvs |
Operating Range | DC 0…10 V | Operating Voltage | AC 24 V; DC 24 V |
Positioning Time | DC 0...10 V; DC 2...10 V; DC 4...20 mA | Positioning Signal | DC 0...10 V; DC 2...10 V; DC 4...20 mA |
Installation Position | Perpendicular to the horizontal plane | Power Consumption | 29 VA |
Permissible Operating Pressure | 1000 kPa | Lifecycle | P.M300 |
Country of Origin | Switzerland | ECCN | N |
AL | N | Model | BPZ:MXF461.15-1.5 |
Specifications may be subject to change without notice
