Product Model

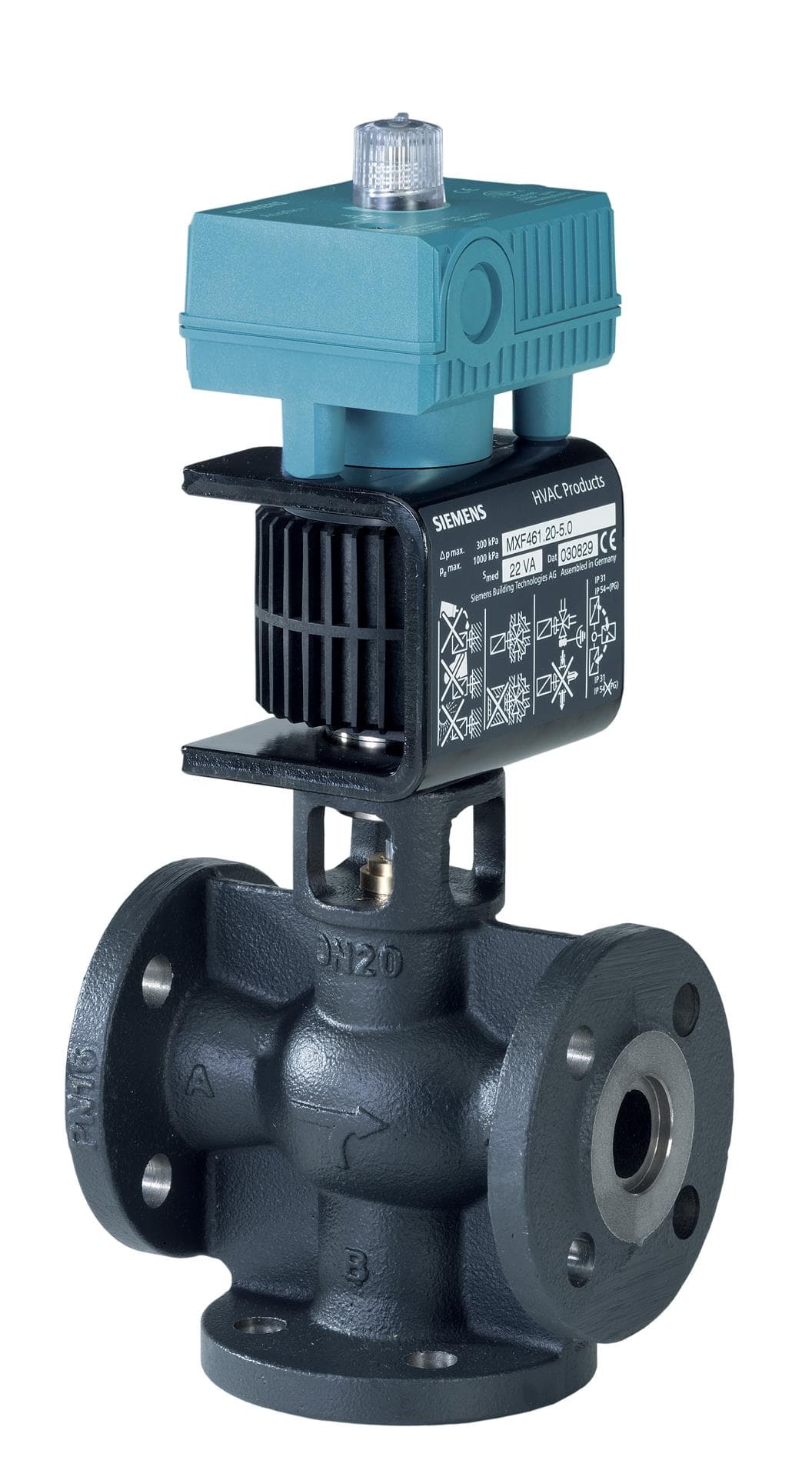

BPZ:MXF461.25-8.0
Selling Points
- 1Advanced Mixing Control: Precise modulation of chilled or low-temperature hot water systems.
- 2Magnetic Actuator: Reliable and efficient control with minimal maintenance.
- 3Positioning Control: Accurate positioning feedback signal for optimal system performance.
- 4Spring Return Function: Ensures safe operation with spring return in case of power failure.
- 5Manual Control: Easy manual override for quick adjustments and troubleshooting.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Leakage Rate | 0.02% of kvs | Bypass Leakage Rate | 0.2% of kvs |
Operating Range | DC 0…10 V | Operating Voltage | AC 24 V; DC 24 V |
Positioning Time | DC 0...10 V; DC 2...10 V; DC 4...20 mA | Positioning Signal | DC 0...10 V; DC 2...10 V; DC 4...20 mA |
Installation Position | Perpendicular to the horizontal plane | Power Consumption | 29 VA |
Permissible Operating Pressure | 1000 kPa | Lifecycle | P.M300 |
Country of Origin | Switzerland | ECCN | N |
AL | N | Model | BPZ:MXF461.25-8.0 |
Specifications may be subject to change without notice
