Product Model

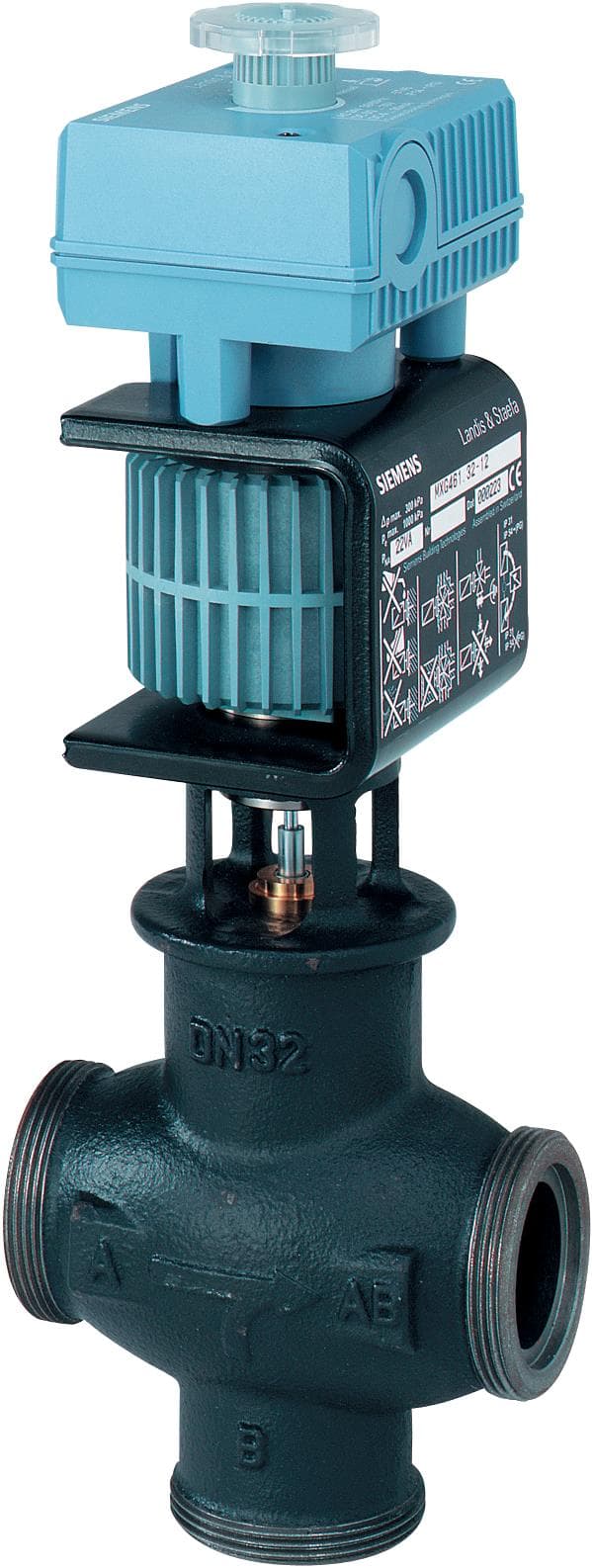

BPZ:MXG461.50-30
Selling Points
- 1Precision Modulation: Offers precise control over fluid flow with a high stroke resolution of 1:1000.
- 2Durable Design: Constructed with cast iron EN-GJL-250 for the valve body and CrNi steel/brass for the inside set.
- 3Versatile Control Options: Compatible with DC 0...10, DC 2...10, and DC 4..20 V positioning signals.
- 4Reliable Operation: Operates within a wide ambient temperature range of -5°C to 45°C.
- 5High Accuracy: Ensures reliable operation with a leakage rate of less than 0.02% of k<subscript>vs</subscript> value.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Leakage Rate | 0.02% of kvs | Bypass Leakage Rate | 0.2% of kvs |
Operating Range | DC 0…10 V | Operating Voltage | AC 24 V; DC 24 V |
Positioning Time | DC 0...10 V; DC 2...10 V; DC 4...20 mA | Positioning Signal | DC 0...10 V; DC 2...10 V; DC 4...20 mA |
Installation Position | Vertical to the horizontal plane | Power Consumption | 44 VA |
Permitted Operating Pressure | 1000 kPa | Lifecycle | P.M300 |
Country of Origin | Switzerland | ECCN | N |
AL | N | Model Number | BPZ:MXG461.50-30 |
Specifications may be subject to change without notice
