Product Model

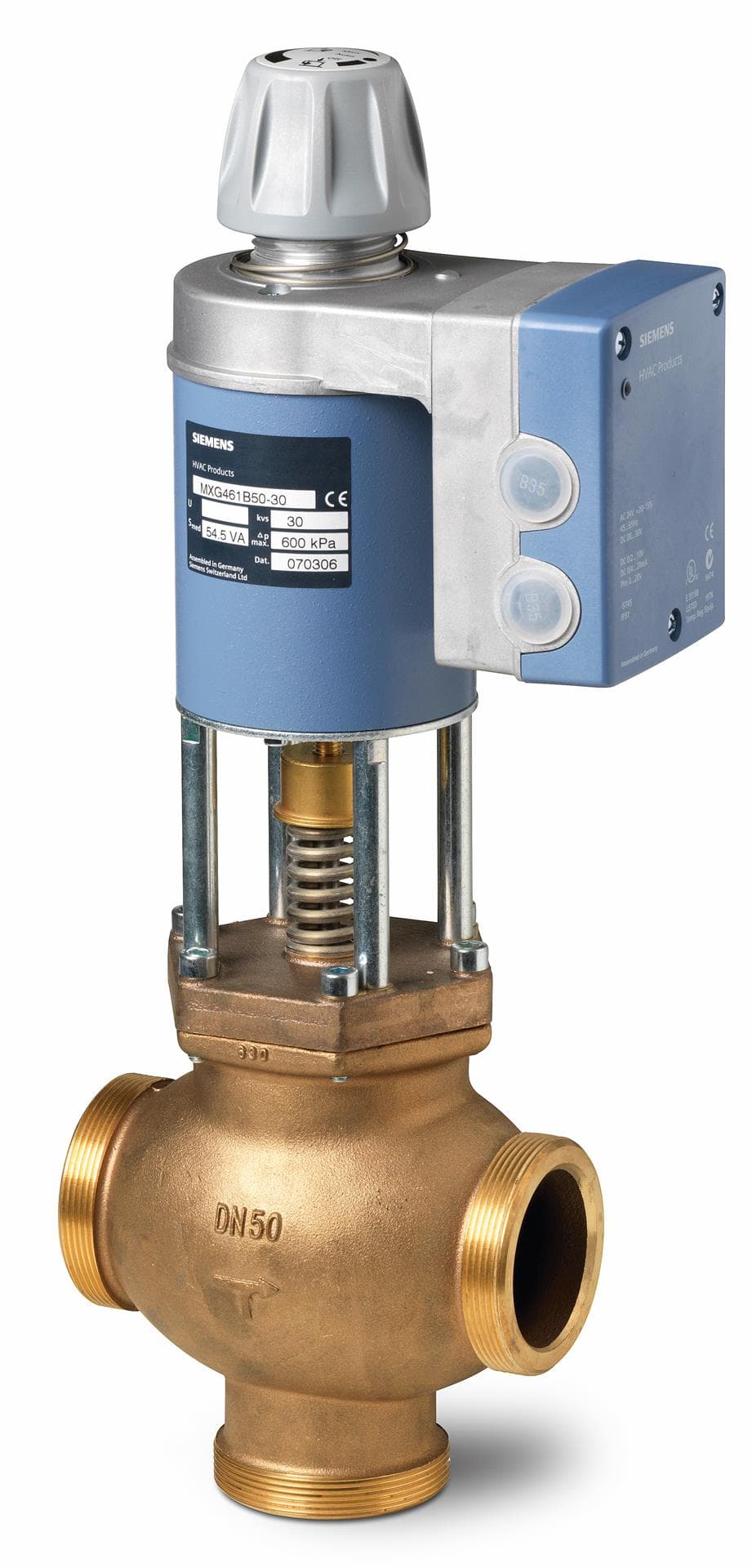

BPZ:MXG461B15-1.5
Selling Points
- 1High Efficiency: Optimized for HVAC applications with Cv 1.8, ensuring precise control and energy efficiency.
- 2Versatile Control: Compatible with 0 to 10V control and 4-20 mA output signals for seamless integration.
- 3Durable Construction: Made from red brass with a spring return magnetic actuator for reliable operation.
- 4Easy Installation: Quick and simple installation process, minimizing downtime and maintenance costs.
- 5Comprehensive Support: Backed by Siemens' comprehensive support tools and apps for easy project planning and execution.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Leakage Rate | 0.05% of kvs | By-pass Leakage Rate | 0.2% of kvs |
Operating Range | DC 0…10 V; 0…20 mA; DC 2…10 V; 4…20 mA | Operating Voltage | AC 24 V; DC 20…30 V |
Positioning Time | DC 0...10 V; DC 2...10 V; DC 4...20 mA; DC 0...20 mA; DC 0...20 V Phs | Positioning Signal | DC 0...10 V; DC 2...10 V; DC 4...20 mA; DC 0...20 mA; DC 0...20 V Phs |
Installation Position | Vertical to the horizontal plane | Power Consumption | 33 VA |
Permissible Operating Pressure | 1600 kPa | Lifecycle | P.M300 |
Country of Origin | Switzerland | ECCN | N |
AL | N | Model Number | BPZ:MXG461B15-1.5 |
Specifications may be subject to change without notice
