Product Model

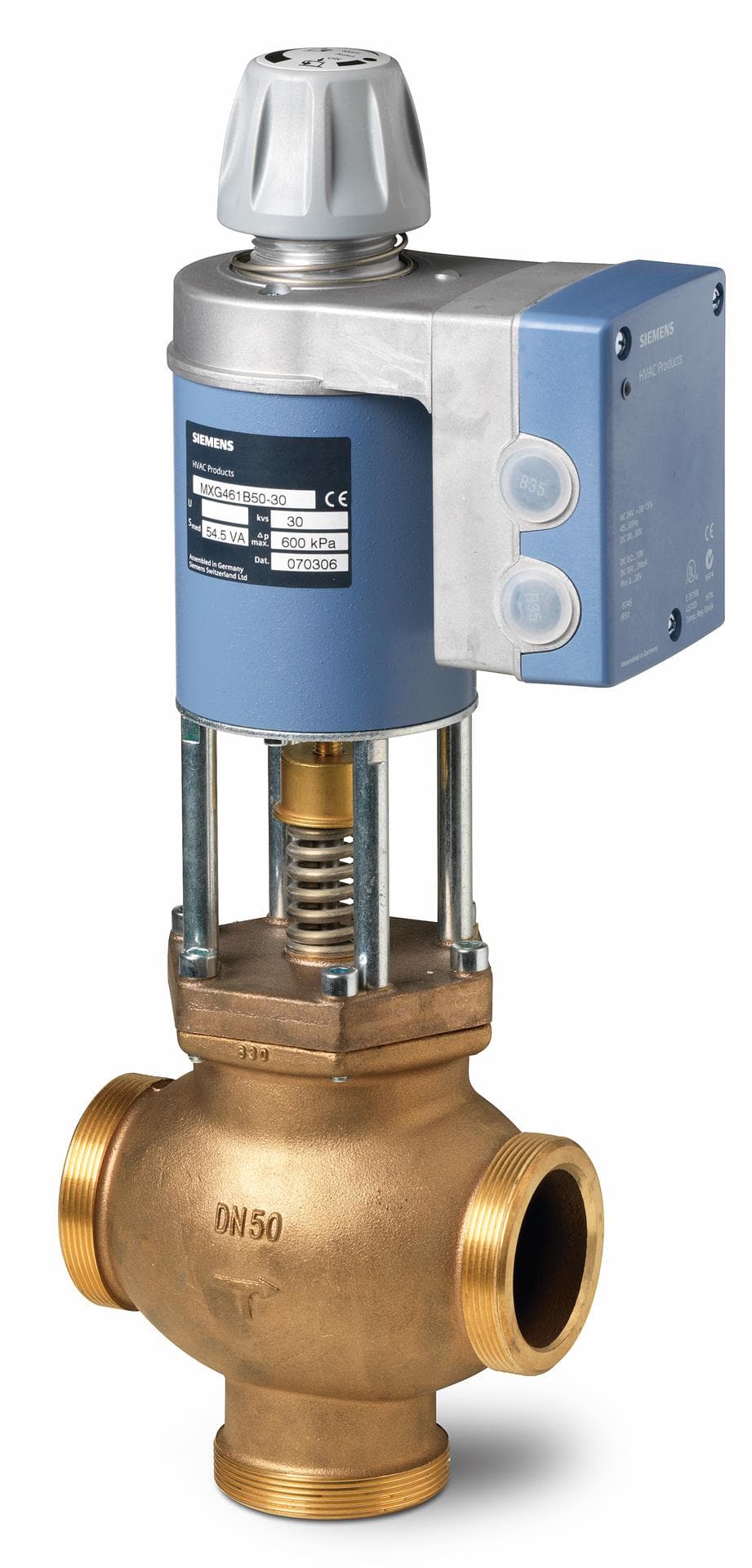

BPZ:MXG461B15-3
Selling Points
- 1The MXG461B15-3 offers precise control over temperature in HVAC systems.
- 2Equipped with a magnetic actuator for smooth and reliable operation.
- 3Provides a position feedback signal for enhanced control accuracy.
- 4Features a spring return function for automatic reset in case of power failure.
- 5Meets UL listing standards for safety and reliability in HVAC applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Leakage Rate | 0.05% of kvs | Bypass Leakage Rate | 0.2% of kvs |
Operating Range | DC 0…10 V; 0…20 mA; DC 2…10 V; 4…20 mA | Operating Voltage | AC 24 V; DC 20…30 V |
Positioning Time | DC 0...10 V; DC 2...10 V; DC 4...20 mA; DC 0...20 mA; DC 0...20 V Phs | Positioning Signal | DC 0...10 V; DC 2...10 V; DC 4...20 mA; DC 0...20 mA; DC 0...20 V Phs |
Installation Position | Vertical to the horizontal plane | Power Consumption | 33 VA |
Permissible Operating Pressure | 1600 kPa | Lifecycle | P.M300 |
Country of Origin | Switzerland | ECCN | N |
AL | N | Model Number | BPZ:MXG461B15-3 |
Specifications may be subject to change without notice
