Product Model

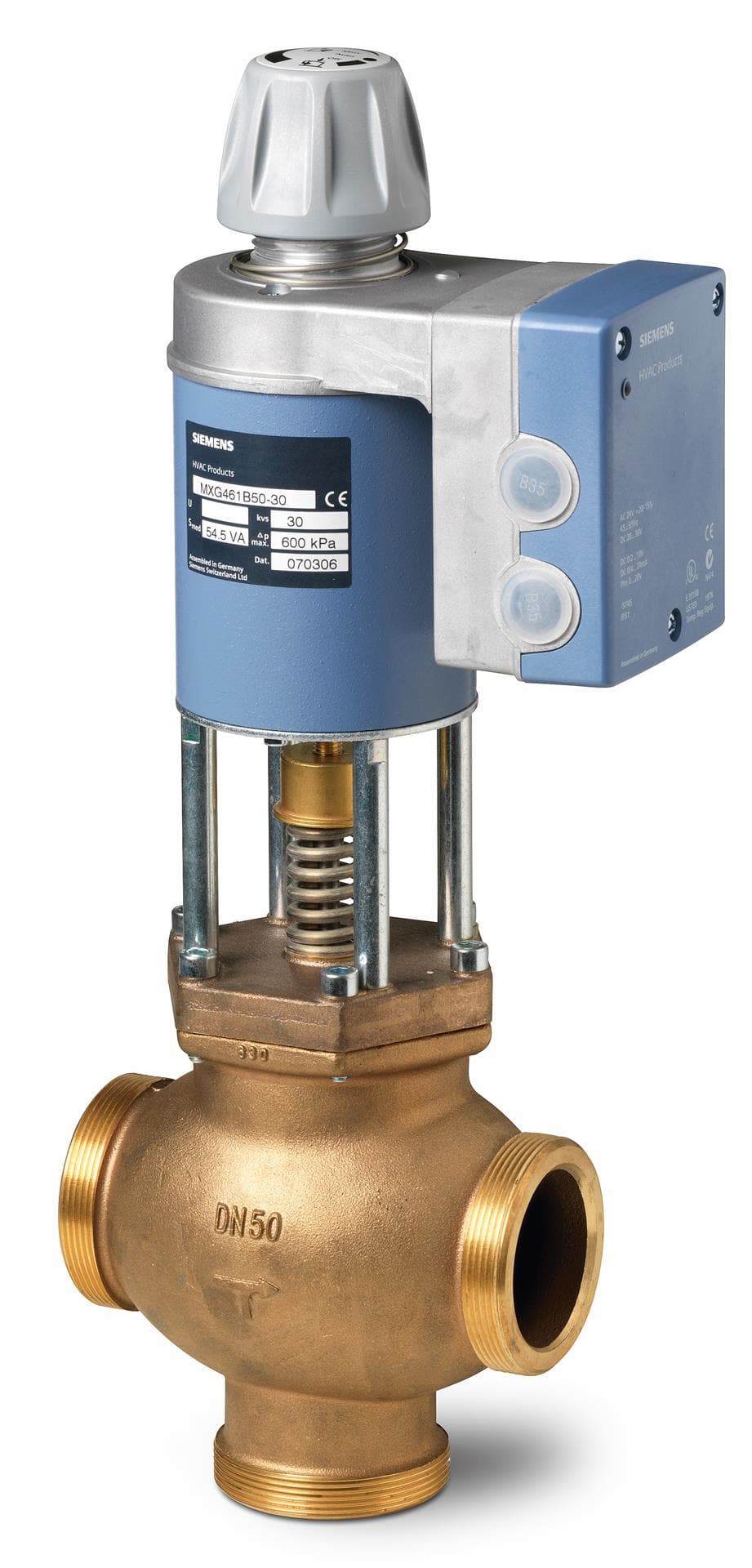

BPZ:MXG461B25-8
Selling Points
- 1High-resolution mixing/2-port magnetic control valve.
- 2External thread design for easy installation.
- 3Compatible with AC/DC 24 V and DC 0/2...10 V / 4...20 mA signals.
- 4Fast positioning time of ≤ 2 seconds for precise control.
- 5Manual override and auto calibration for reliable operation.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Leakage Rate | 0.05% of kvs | Bypass Leakage Rate | 0.2% of kvs |
Operating Range | DC 0…10 V; 0…20 mA; DC 2…10 V; 4…20 mA | Operating Voltage | AC 24 V; DC 20…30 V |
Positioning Time | DC 0...10 V; DC 2...10 V; DC 4...20 mA; DC 0...20 mA; DC 0...20 V Phs | Positioning Signal | DC 0...10 V; DC 2...10 V; DC 4...20 mA; DC 0...20 mA; DC 0...20 V Phs |
Installation Position | Vertically to the horizontal plane | Power Consumption | 33 VA |
Permissible Operating Pressure | 1600 kPa | Lifecycle | P.M300 |
Country of Origin | Switzerland | ECCN | N |
AL | N | Model Number | BPZ:MXG461B25-8 |
Specifications may be subject to change without notice
