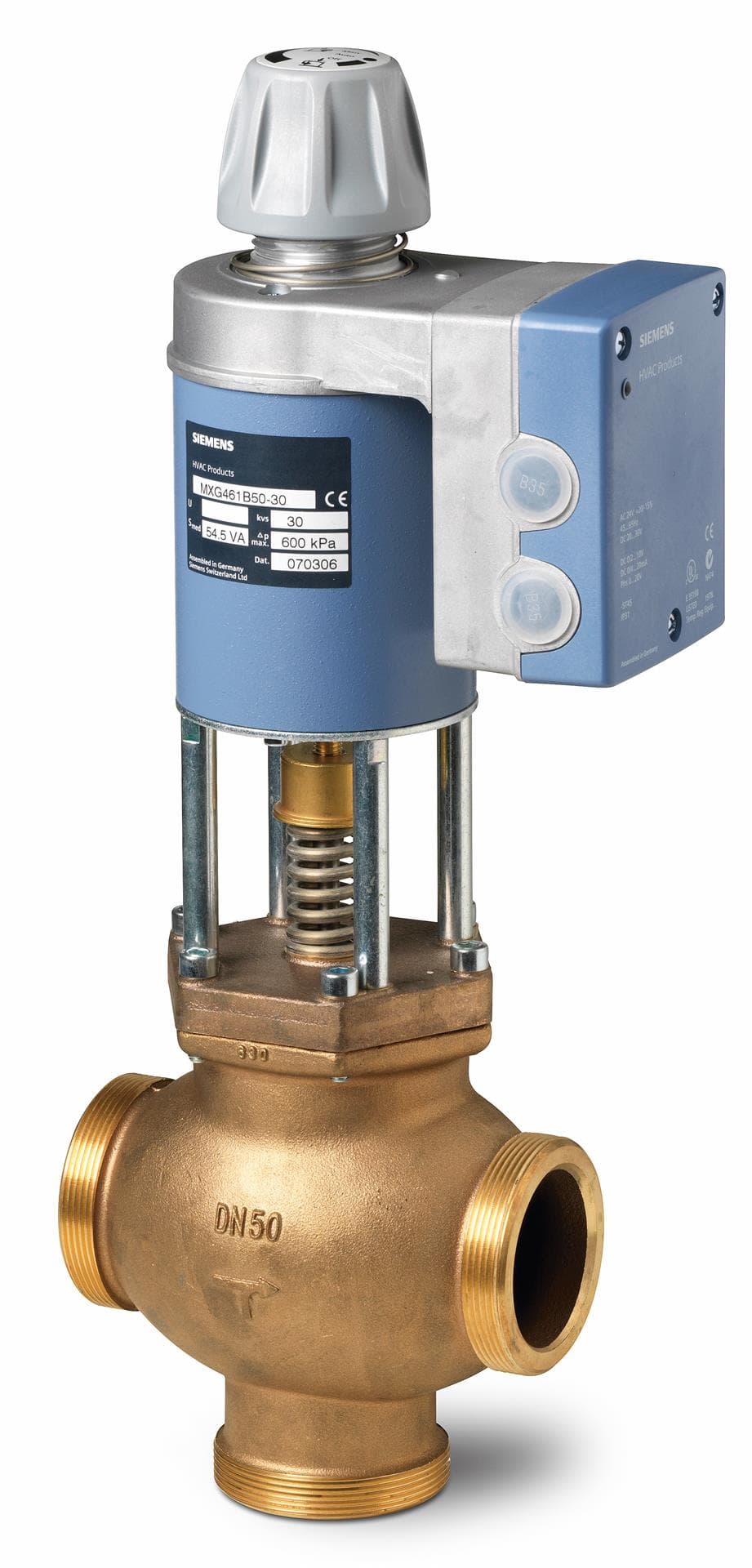

Product Model
BPZ:MXG461B32-12
Selling Points
- 1Precision Control: Offers precise control over water flow with 0 to 10V and 4 to 20 mA signals.
- 2Versatile Application: Suitable for domestic (potable) water, chilled water, and hot water systems.
- 3High-Pressure Compatibility: Designed for PN16 pressure rating and DN32 diameter.
- 4Robust Construction: Built with external threads for secure installation and durability.
- 5Wide Voltage Compatibility: Operates on AC/DC 24V and DC 0/2...10V signals.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Leakage Rate | 0.05% of kvs | Bypass Leakage Rate | 0.2% of kvs |
Operating Range | DC 0…10 V; 0…20 mA; DC 2…10 V; 4…20 mA | Operating Voltage | AC 24 V; DC 20…30 V |
Positioning Time | DC 0...10 V; DC 2...10 V; DC 4...20 mA; DC 0...20 mA; DC 0...20 V Phs | Positioning Signal | DC 0...10 V; DC 2...10 V; DC 4...20 mA; DC 0...20 mA; DC 0...20 V Phs |
Installation Position | Vertical to the horizontal plane | Power Consumption | 43 VA |
Permissible Operating Pressure | 1600 kPa | Lifecycle | P.M300 |
Country of Origin | Switzerland | ECCN | N |
AL | N | Model Number | BPZ:MXG461B32-12 |
Specifications may be subject to change without notice
