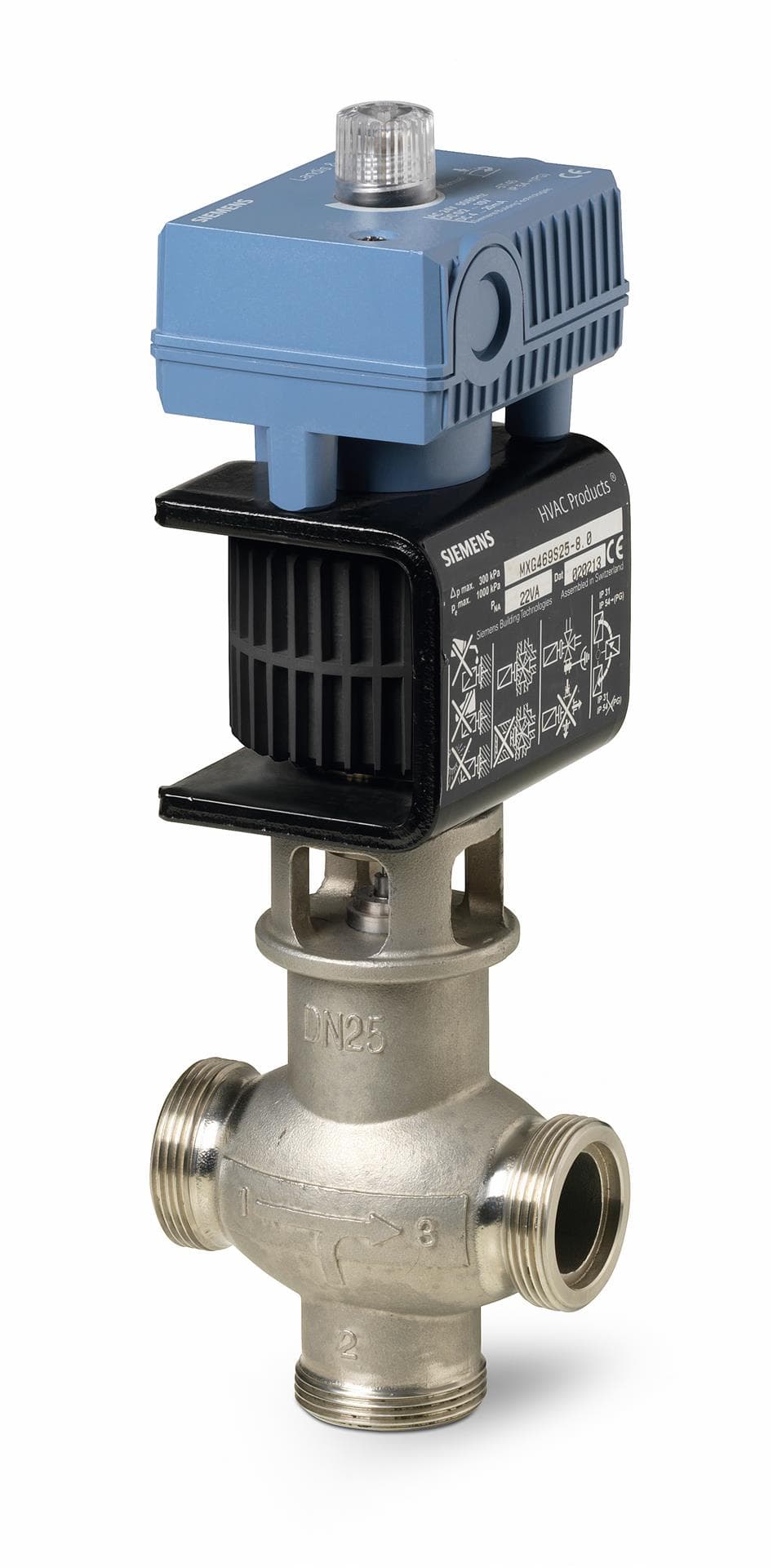

Product Model
BPZ:MXG461S25-8.0
Selling Points
- 1Precise Flow Regulation: The BPZ:MXG461S25-8.0 ensures accurate flow control with its magnetic actuator.
- 2External Thread Design: Externally threaded for easy installation and maintenance.
- 3PN16 and DN25 Compatibility: Suitable for applications requiring PN16 and DN25 specifications.
- 4AC/DC Compatibility: Operates on both AC 24 V and DC 0-10 V/DC 4-20 mA signals.
- 5High-Quality Construction: Built with Siemens' reputation for durability and reliability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Leakage Rate | 0.02% of kvs | Bypass Leakage Rate | 0.2% of kvs |
Operating Range | DC 0…10 V | Operating Voltage | AC 24 V; DC 24 V |
Positioning Time | DC 0...10 V; DC 2...10 V; DC 4...20 mA | Positioning Signal | DC 0...10 V; DC 2...10 V; DC 4...20 mA |
Installation Position | Vertical to Horizontal | Power Consumption | 29 VA |
Permitted Operating Pressure | 1000 kPa | Lifecycle | P.M300 |
Country of Origin | Switzerland | ECCN | N |
AL | N | Model | BPZ:MXG461S25-8.0 |
Specifications may be subject to change without notice
