Product Model

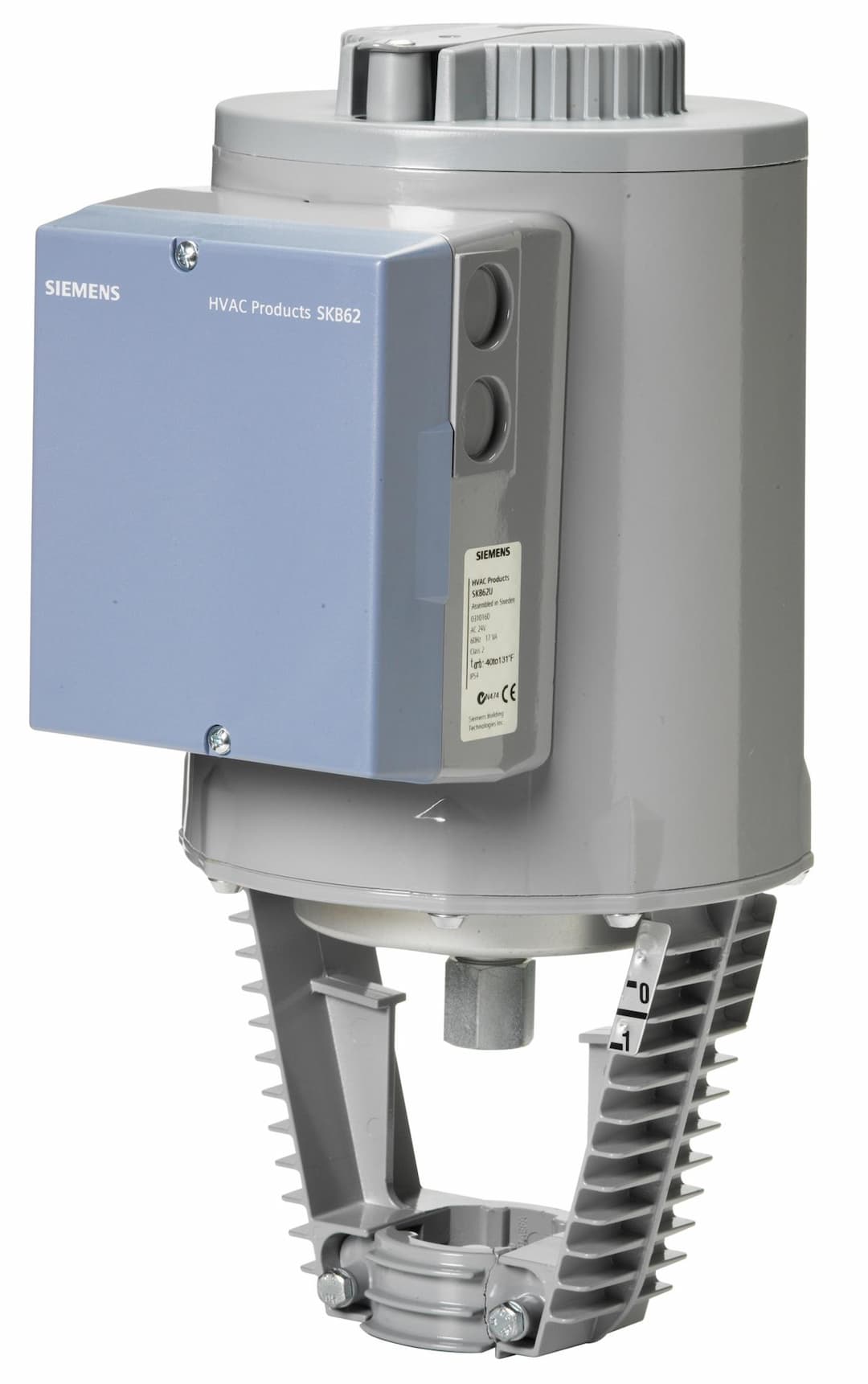

BPZ:SKB62U
Selling Points
- 1High force output of 2800 N for robust control.
- 2Compact size with 20 mm stroke for space-saving installations.
- 3Compatible with AC 24 V and DC 0...10 V/4...20 mA inputs.
- 4Spring return mechanism ensures consistent operation.
- 5Manufactured in Germany for exceptional quality and reliability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Operating Voltage | AC 24 V | Positioning Time | 0...1000 Ohm; DC 0...10 V; DC 4...20 mA |
Positioning Signal | 0...1000 Ohm; DC 0...10 V; DC 4...20 mA | Installation Position | Perpendicular to the horizontal plane |
Power Consumption | 18 VA | Lifecycle | P.M300 |
Country of Origin | Switzerland | ECCN | N |
AL | N | Model Number | BPZ:SKB62U |
Specifications may be subject to change without notice
