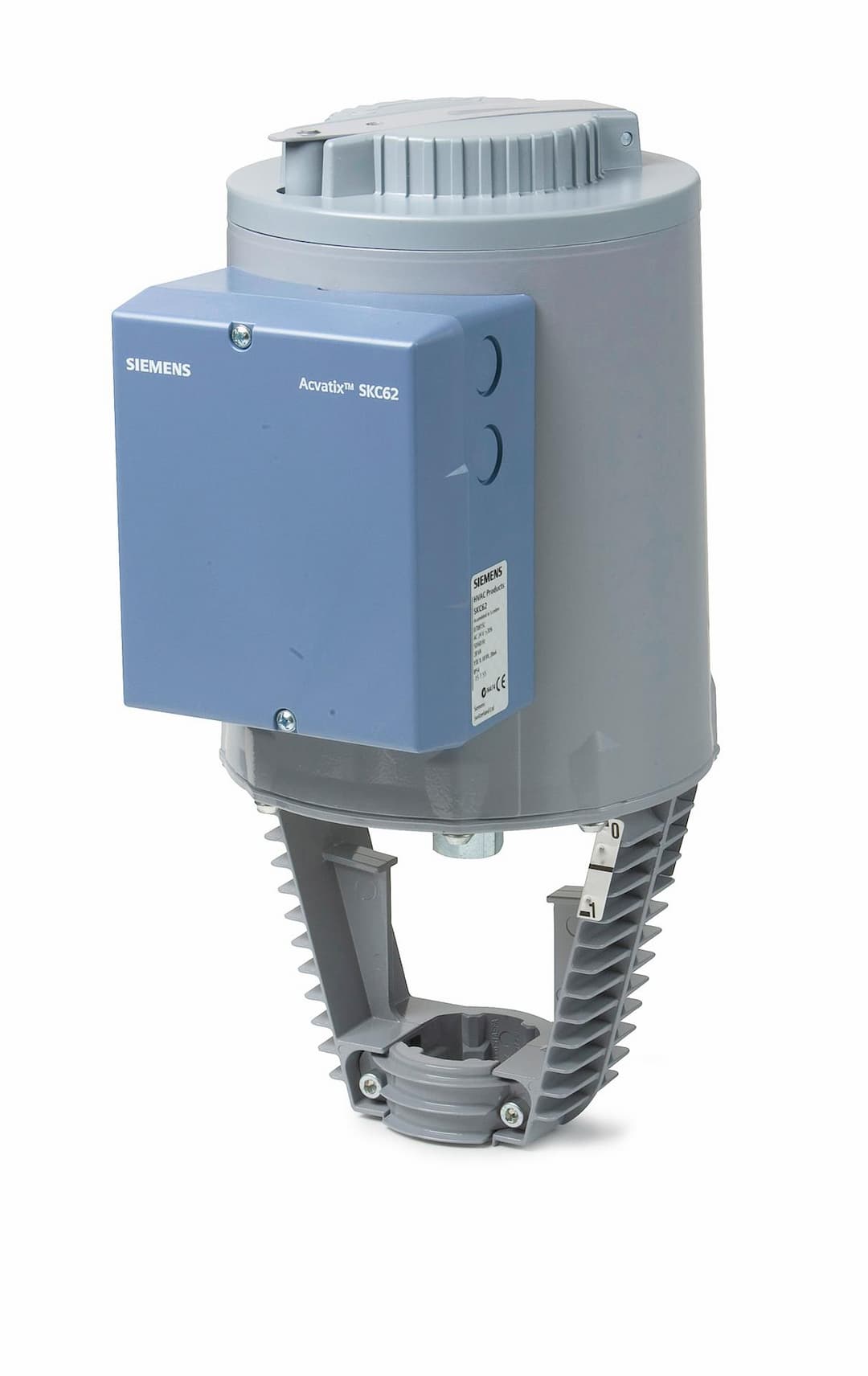

Product Model
BPZ:SKC62UA
Selling Points
- 1High force output of 2800 N for robust performance.
- 2Compact design with a 40 mm stroke for space efficiency.
- 3Compatible with AC 24 V and DC 0...10 V/4...20 mA control signals.
- 4Spring return function for reliable operation.
- 5UL certification for safety and compliance in HVAC applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Operating Voltage | AC 24 V | Positioning Time | 0...1000 Ohm; DC 0...10 V; DC 4...20 mA |
Positioning Signal | 0...1000 Ohm; DC 0...10 V; DC 4...20 mA | Installation Position | Perpendicular to the horizontal plane |
Power Consumption | 28 VA | Lifecycle | P.M300 |
Country of Origin | Switzerland | ECCN | EAR99 |
AL | N | Model | BPZ:SKC62UA |
Specifications may be subject to change without notice
