Product Model

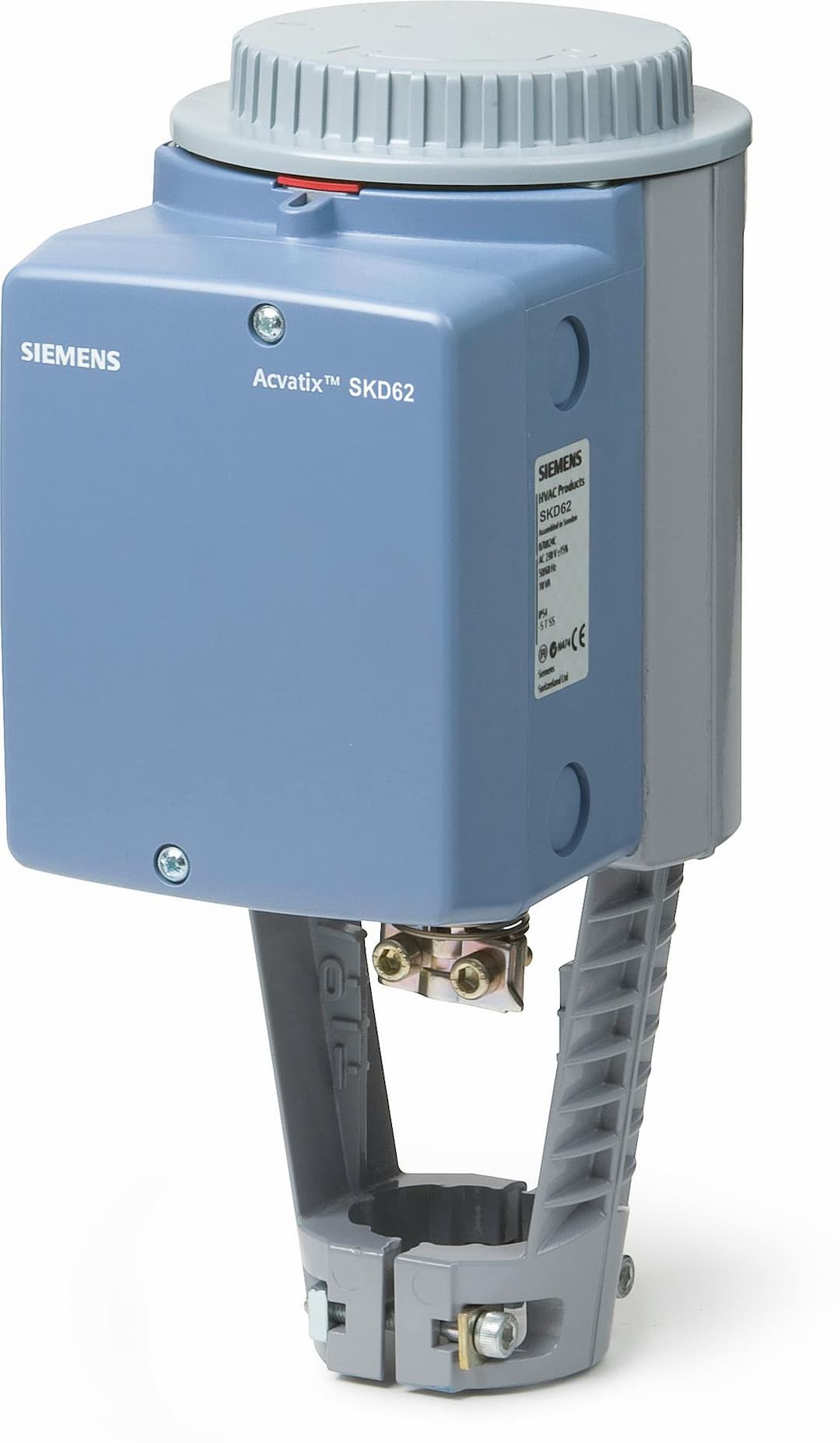

BPZ:SKD62U
Selling Points
- 1High precision control for demanding applications.
- 21000 N force and 20 mm stroke for reliable operation.
- 3Compatible with AC 24 V and DC 0...10 V/4...20 mA signals.
- 4Spring return mechanism for consistent performance.
- 5Ideal for hot or chilled water systems, floor heating, and VAV applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Operating Voltage | AC 24 V | Positioning Time | DC 0...10 V ;DC 4...20 mA;0...1000 Ohm |
Positioning Signal | DC 0...10 V ;DC 4...20 mA;0...1000 Ohm | Installation Position | Perpendicular to the horizontal plane |
Power Consumption | 17 VA | Lifecycle | P.M300 |
Country of Origin | Switzerland | ECCN | N |
AL | N | Model | BPZ:SKD62U |
Specifications may be subject to change without notice
