Product Model

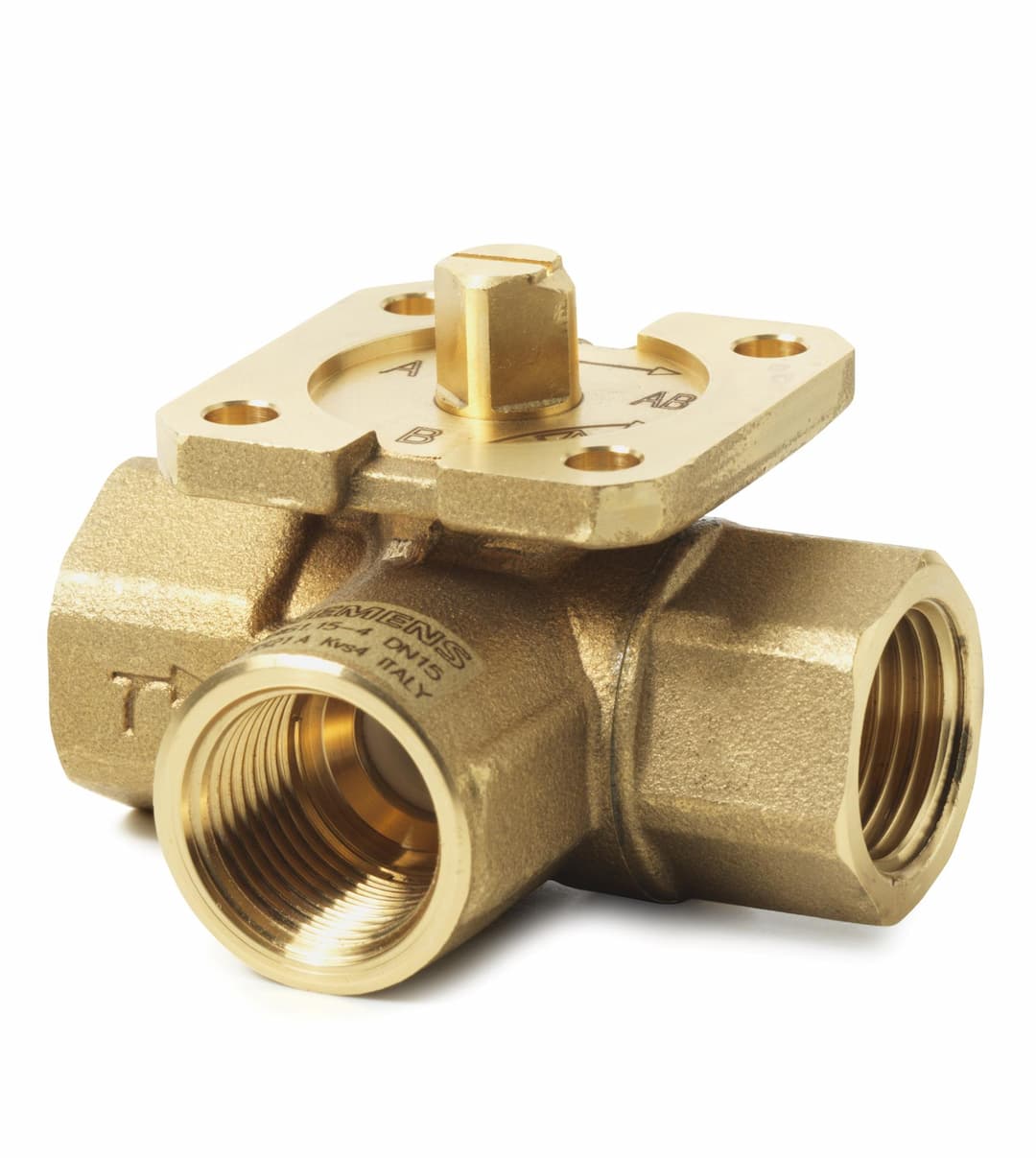

BPZ:VBI61.15-4
Selling Points
- 1Made from brass UNS C35330 (DZR) for durability and resistance to corrosion.
- 2Equipped with internally threaded connections (Rp per ISO 7-1) for easy installation.
- 3Suitable for use in heating, ventilation, and air conditioning plants as a control or shutoff valve.
- 4Recommended maximum differential pressure of 200 kPa for low noise operation.
- 5Simple mounting with premounted brackets on actuators, no special tools required.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Leakage Rate | ‘Waterproof’ in accordance with EN 60534-4 L/1, exceeding Level 4 | Bypass Leakage Rate | 1% of the kvs value |
Installation Position | Vertical up to a 90° vertical inclination | Permissible Operating Pressure | 1600 kPa |
Lifecycle | P.M300 | Country of Origin | Switzerland |
ECCN | N | AL | N |
Model | BPZ:VBI61.15-4 |
Specifications may be subject to change without notice
