Product Model

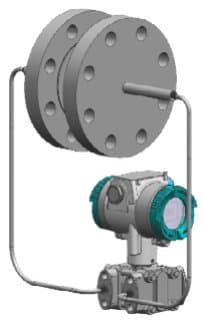

DP WITH REMOTE SEAL
Selling Points
- 1No direct contact between the pressure transmitter and the medium.
- 2Individual configuration for perfect adaptation to operating conditions.
- 3Available in many versions to suit diverse applications.
- 4Quick-release versions available for fast cleaning in the food industry.
- 5Designed for difficult operating conditions, including corrosive and viscous media.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Head Protection Rating | With | Terminal Protection Rating | Gas, liquid, and vapor resistant to corrosion and non-corrosion |
Bracket | Carbon Steel Bracket | Display | With |
Cable and Plug Material | Plastic | Electrical Connection | 1/2-14 NPT |
Explosion Protection Type | Non-Explosion Proof | Enclosure Material | Cast Aluminum |
Capillary Configuration | 3 meters on each side | Filling Liquid | High-Temperature Silicone Oil |
Wetted Materials | 316L Stainless Steel | Process Connection | Dual Flanges, EN 1092 DN80 PN40 Form B1 |
Ambient Temperature | -10 … 85℃ | Process Temperature | -10 … 400℃ |
Measuring Range | 0 … 60 KPa | Communication Type | HART 7 |
Product Series | With Remote Seal Assembly | Lifecycle | Delivery Release (PM300) |
Country of Origin | China | ECCN | N |
AL | N | Model Number | DP WITH REMOTE SEAL |
Specifications may be subject to change without notice
