Product Model

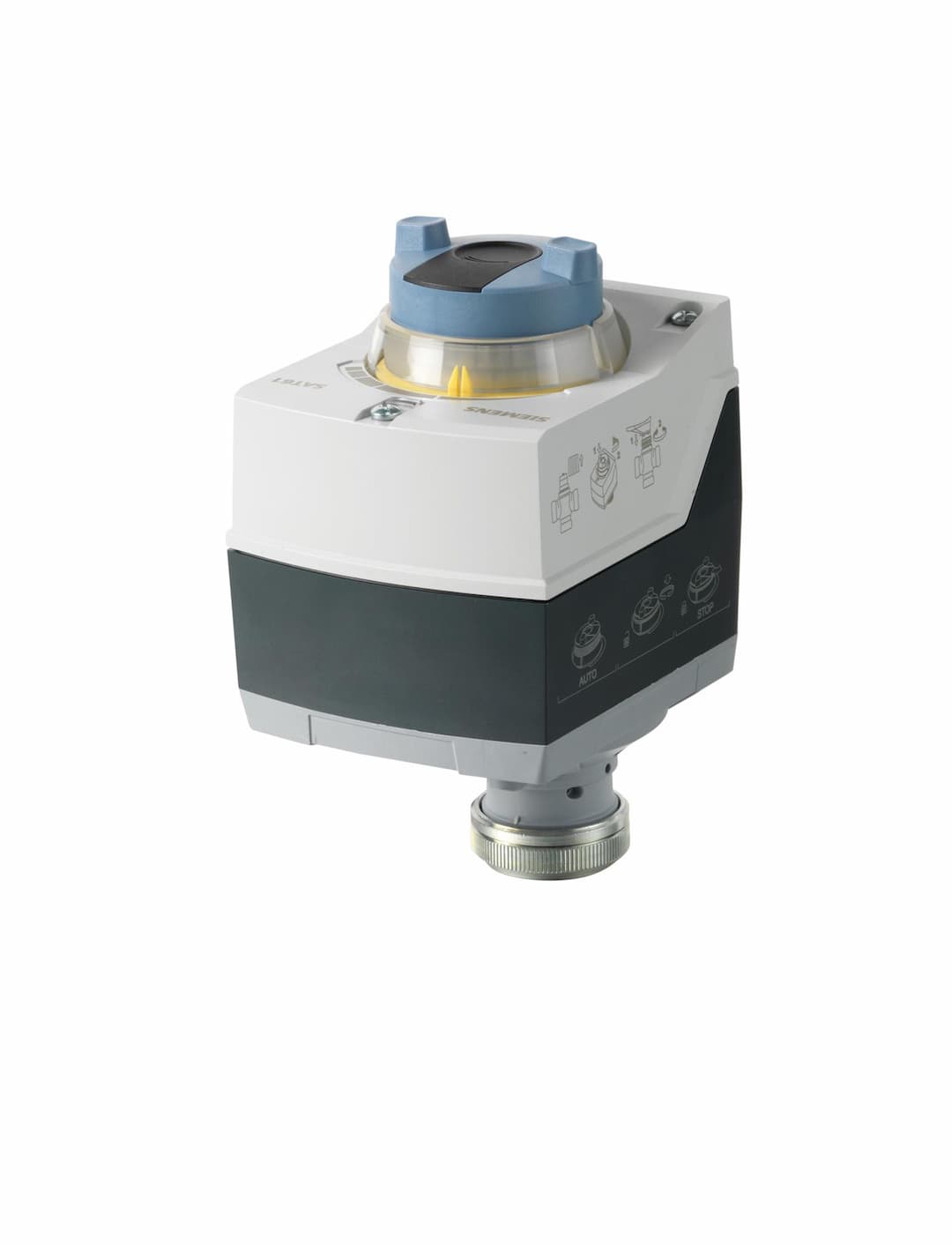

S55158-A117
Selling Points
- 1Precise Valve Control: The S55158-A117 actuator offers a 5.5 mm stroke and 300 N positioning force for precise valve control.
- 2Versatile Signal Options: Compatible with AC/DC 24 V, DC 0...10 V, and DC 4...20 mA signals for flexible integration.
- 3Power-Dependent Seat Detection: Ensures accurate valve position after calibration, storing the exact stroke in the actuator's memory.
- 4Foreign Body Protection: Detects clogging and attempts to overcome it; if unsuccessful, continues operation within a limited range with LED flashing red.
- 5Modbus RTU Communication: Supports Modbus RTU protocol for seamless integration with control systems via RS-485 connection.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Operating Range | DC 0…10 V | Operating Voltage | AC/DC 24 V |
Positioning Time | DC 0…10 V; DC 4…20 mA; 0…1000 ohms | Positioning Signal | DC 0…10 V; DC 4…20 mA; 0…1000 ohms |
Installation Position | Perpendicular to the horizontal plane | Power Consumption | 7.1 VA |
Lifecycle | P.M300 | Country of Origin | Switzerland |
ECCN | 9N9999 | AL | N |
Model Number | S55158-A117 |
Specifications may be subject to change without notice
