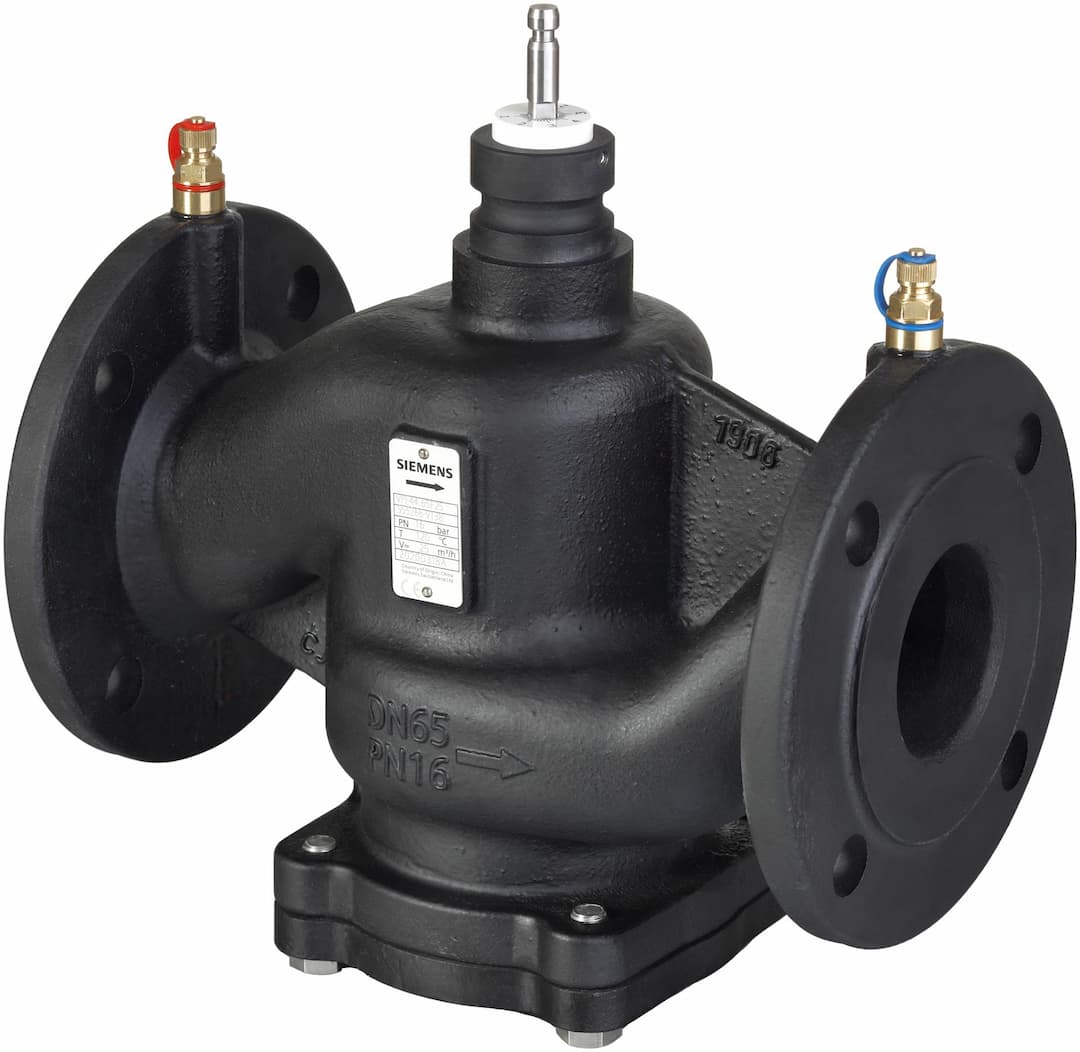

Product Model
S55266-V178
Selling Points
- 1Maintains constant differential pressure across the valve, ensuring consistent volumetric flow.
- 2Valve body made of gray cast iron GJL-250 (PN 16) and nodular cast iron GJL-400 (PN 25) for durability.
- 3Available in the range from DN 50 to 200, with nominal volumetric flows from 15 to 280 m3/h.
- 4Equipped with pressure test points P/T for easy commissioning and monitoring.
- 5Compatible with SAX..P.., SAV..P.., or SQV..P.. electromotoric actuators for precise control.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Leakage Rate | Class IV (0…0.01% of volumetric flow) | Installation Position | Upright to 90° inclined |
Permissible Operating Pressure | 1600 kPa | Lifecycle | P.M300 |
Country of Origin | China | ECCN | N |
AL | N | Model | S55266-V178 |
Specifications may be subject to change without notice
