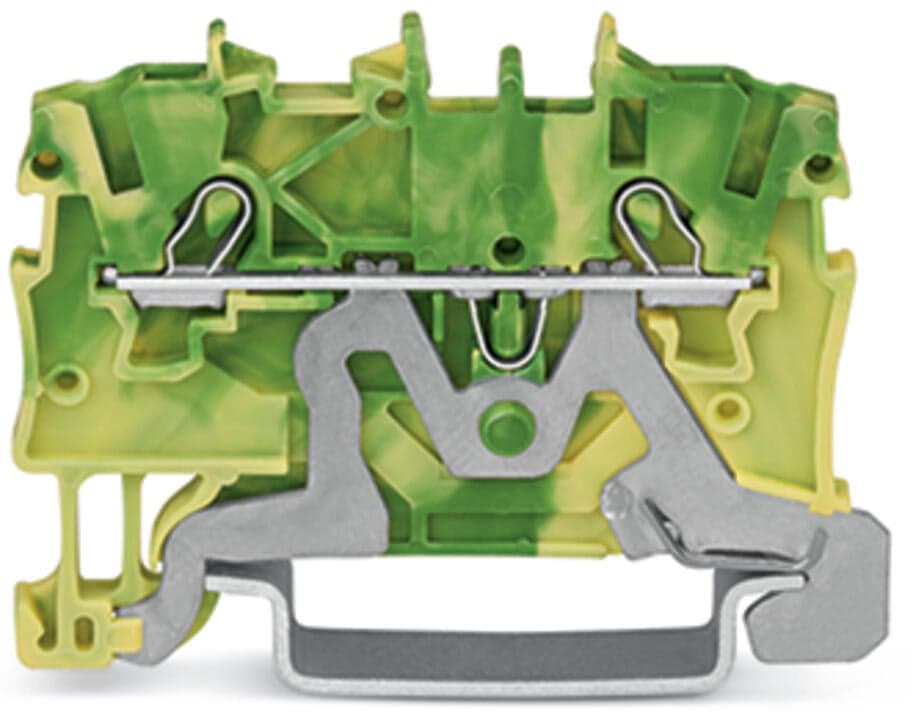

Product Model
2000-1207
Selling Points
- 1Ensures seamless performance and minimizes installation time.
- 2Simplifies wiring with a screwless method.
- 3Suitable for hazardous environments with side and center marking.
- 4Optimizes operation on 35 x 15 and 35 x 7.5 DIN rails.
- 5Clearly identifies the ground terminal block.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Clamping units | 2 | Total number of potentials | 1 |
Number of levels | 1 | Number of jumper slots | 2 |
Width | 3.5?mm?/ 0.138?inches | Height | 50.8?mm?/ 2?inches |
Depth from upper-edge of DIN-rail | 32.9?mm?/ 1.295?inches | Mounting type | DIN-35 rail |
Marking level | Center/side marking | Note (material data) | Information on material specifications can be found here |
Color | green-yellow | Material group | I |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Fire load | 0.07MJ | Weight | 5.7g |
Processing temperature | -35 … +85?°C | Continuous operating temperature | -60 … +105?°C |
Product Group | 22 (TOPJOB S) | eCl@ss 10.0 | 27-14-11-41 |
eCl@ss 9.0 | 27-14-11-41 | ETIM 9.0 | EC000901 |
ETIM 8.0 | EC000901 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 100?pcs | Packaging type | box |
Country of origin | CN | GTIN | 4045454966829 |
Customs tariff number | 8536904000 | RoHS Compliance Status | Compliant,No Exemption |
Ratings per | IEC/EN 60947-7-2 | Reference hazardous areas | See “Downloads – Documentation – Additional Information: Technical Section; Technical Explications” |
Connection technology | Push-in CAGE CLAMP? | Actuation type | Operating tool |
Connectable conductor materials | Copper | Nominal cross-section | 1 mm2 |
Solid conductor | 0.14 … 1.5?mm2?/ 24 … 16?AWG | Solid conductor; push-in termination | 0.5 … 1.5?mm2?/ 20 … 16?AWG |
Fine-stranded conductor | 0.14 … 1.5?mm2?/ 24 … 16?AWG | Fine-stranded conductor; with insulated ferrule | 0.14 … 0.75?mm2?/ 24 … 18?AWG |
Fine-stranded conductor; with ferrule; push-in termination | 0.5 … 0.75?mm2?/ 20 … 18?AWG | Note (conductor cross-section) | Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination. |
Strip length | 9 … 11?mm?/ 0.35 … 0.43?inches | Wiring direction | Front-entry wiring |
Test specification <br/>Railway applications – <br/>Rolling stock – <br/>Electronic equipment | DIN EN 50155 (VDE 0115-200):2022-06 | Test procedure <br/>Railway applications – <br/>Rolling stock equipment – <br/>Shock and vibration tests | DIN EN 61373 (VDE 0115-0106):2011-04 |
Spectrum/Installation location | Service life test, Category?1, Class?A/B | Function test with noise-like vibration | Test passed according to Section 8 of the standard |
Frequency | f1= 5 Hz to f2= 150 Hz | Acceleration | 5g (highest test level used for all axes) |
Test duration per axis | 5 h | Test directions | X, Y and Z axes |
Monitoring for contact faults/interruptions | Passed | Voltage drop measurement before and after each axis | Passed |
Simulated service life test through increased levels of noise-like vibration | Test passed according to Section 9 of the standard | Extended test scope: Monitoring for contact faults/interruptions | Passed |
Extended test scope: Voltage drop measurement before and after each axis | Passed | Shock test | Test passed according to Section 10 of the standard |
Shock form | Half sine | Shock duration | 30 ms |
Number of shocks per axis | 3 pos. und 3 neg. | Vibration and shock stress for rolling stock equipment | Passed |
Specifications may be subject to change without notice
