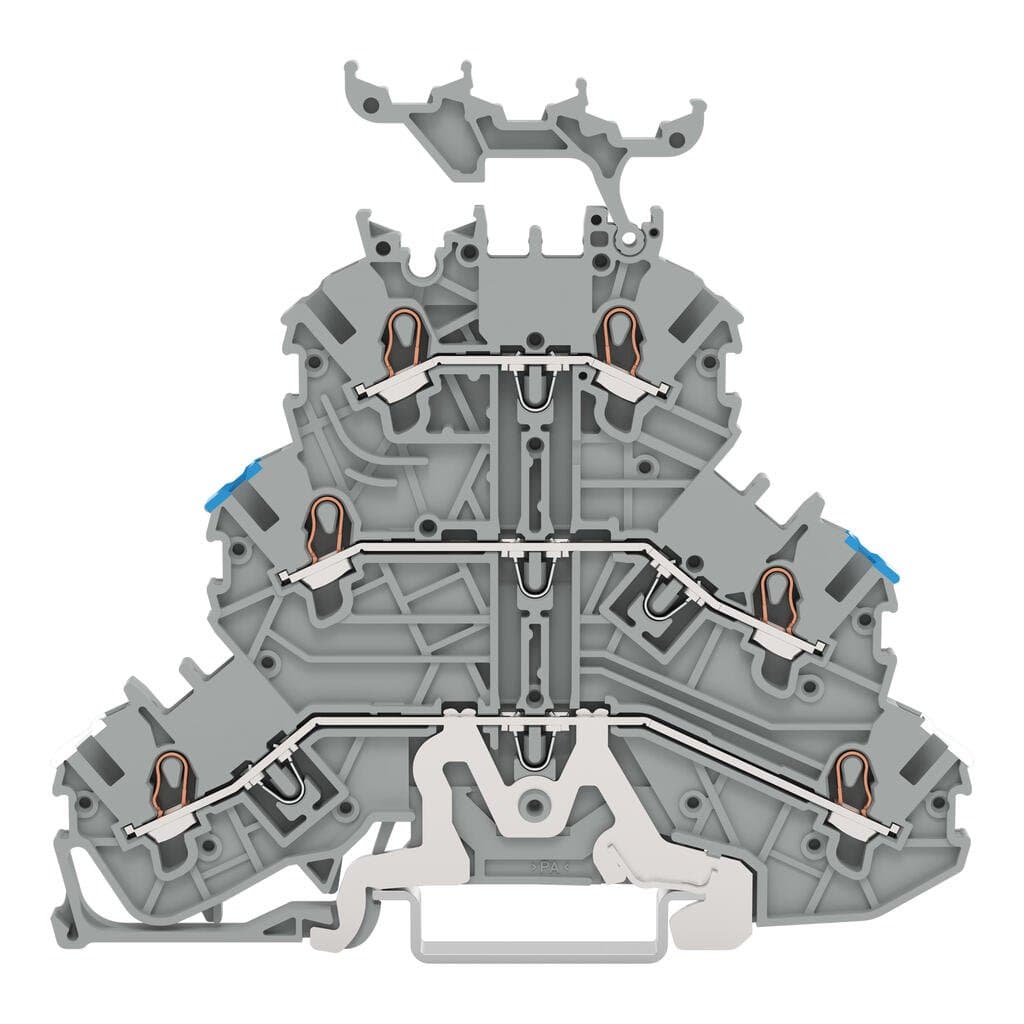

Product Model
2000-3248
Selling Points
- 1Triple-deck design for compact and efficient use of space.
- 2Push-in CAGE CLAMP spring connections for secure and maintenance-free wiring.
- 3Suitable for DIN-rail mounting (35 x 15 and 35 x 7.5).
- 4Accommodates wire sizes from 0.25mm² to 4mm² (#22AWG to #12AWG).
- 5Rated for currents up to 24A according to IEC standards.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Total number of potentials | 3 | Number of levels | 3 |
Number of jumper slots | 6 | Width | 3.5?mm?/ 0.138?inches |
Height | 93.6?mm?/ 3.685?inches | Depth from upper-edge of DIN-rail | 83.8?mm?/ 3.299?inches |
Potential Marking | Shield/N/L | Mounting type | DIN-rail 35 x 15 |
Marking level | Center/side marking | Note (material data) | Information on material specifications can be found here |
Color | gray | Material group | I |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Fire load | 0.271MJ | Weight | 15.5g |
Processing temperature | -35 … +85?°C | Continuous operating temperature | -60 … +105?°C |
ETIM 9.0 | EC000897 | ETIM 8.0 | EC000897 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 40?pcs |
Packaging type | Box | Country of origin | PL |
GTIN | 4066966381092 | Customs tariff number | 85369010000 |
RoHS Compliance Status | Compliant,No Exemption | Ratings per | IEC/EN 60664-1 |
Rated voltage (III / 3) | 500V | Rated impulse voltage (III / 3) | 6kV |
Rated current | 13.5A | Legend (ratings) | (III / 3) ? Overvoltage category III / Pollution degree 3 |
Reference hazardous areas | See “Downloads – Documentation – Additional Information: Technical Section; Technical Explications” | Power loss, per pole (potential) | 2.298W |
Rated current I<sub>N</sub> for specified power loss | 24A | Resistance value for specified, current-dependent power loss | 0.001Ω |
Connection technology | Push-in CAGE CLAMP? | Total number of connection points | 3 |
Actuation type | Operating tool | Actuation direction 1 | Operation parallel to conductor entry |
Connectable conductor materials | Copper | Nominal cross-section | 1 mm2 |
Solid conductor | 0.14 … 1.5?mm2?/ 24 … 16?AWG | Solid conductor; push-in termination | 0.5?mm2?/ 20?AWG |
Stranded conductor | 0.14 … 1.5?mm2?/ 24 … 16?AWG | Fine-stranded conductor | 0.14 … 1.5?mm2?/ 24 … 16?AWG |
Fine-stranded conductor; with insulated ferrule | 0.5 … 0.75?mm2?/ 20 … 18?AWG | Fine-stranded conductor; with ferrule; push-in termination | 0.5?mm2?/ 20?AWG |
Note (conductor cross-section) | Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination. | Strip length | 9 … 11?mm?/ 0.35 … 0.43?inches |
Number of connection points 2 | 3 |
