Product Model

2000-5317/1101-951

In Stock
Last updated: 2025/4/19

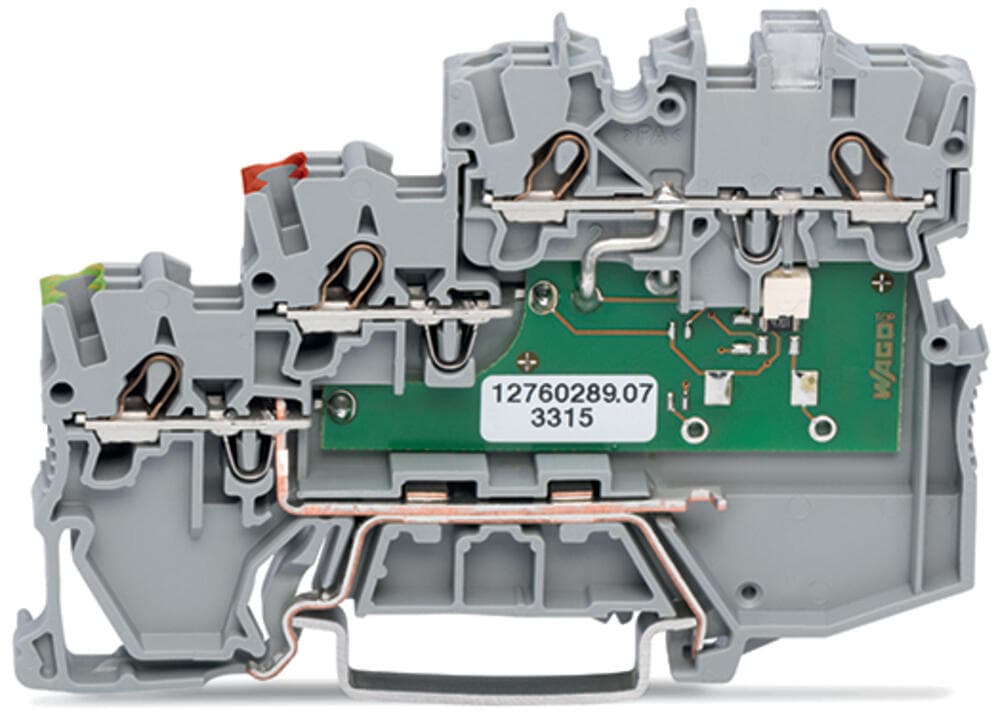

wago 2000-5317/1101-951

Selling Points

  • 1Compact Design: 7 mm wide, perfect for DIN-35 rail mounting.
  • 2Reliable Termination: Push-in cage clamp termination ensures secure connections.
  • 3Ground Contact: Includes ground contact for added safety and stability.
  • 4LED Indication: Yellow LED for visual status indication of the actuator.
  • 5Rugged Construction: Built to withstand industrial environments with high-quality materials.
Product Details
2000-5317/1101-951
wago

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Clamping units
8
Total number of potentials
4
Number of levels
3
Number of jumper slots
3
Width
7?mm?/ 0.276?inches
Height
81.1?mm?/ 3.193?inches
Depth from upper-edge of DIN-rail
52.4?mm?/ 2.063?inches
Mounting type
DIN-35 rail
Marking level
Center/side marking
Note (material data)
Information on material specifications can be found here
Color
gray
Material group
I
Insulation material (main housing)
Polyamide (PA66)
Flammability class per UL94
V0
Fire load
0.356MJ
Weight
19.3g
Processing temperature
-35 … +85?°C
Continuous operating temperature
-60 … +105?°C
eCl@ss 10.0
27-14-11-28
eCl@ss 9.0
27-14-11-28
ETIM 9.0
EC000900
ETIM 8.0
EC000900
ECCN
NO US CLASSIFICATION
PU (SPU)
50?pcs
Packaging type
Box
Country of origin
DE
GTIN
4055143452861
Customs tariff number
8536904000
RoHS Compliance Status
Compliant,No Exemption
Ratings per
IEC/EN 60947-7-1
Rated current
13.5A
Approvals per
CSA 22.2 No 158
Rated voltage UL (Use Group B)
24V
Rated current UL (Use Group B)
15A
Rated voltage UL (Use Group D)
24V
Rated current UL (Use Group D)
15A
Rated voltage CSA (Use Group C)
24V
Rated current CSA (Use Group C)
10A
Power loss, per pole (potential)
0.434W
Rated current I<sub>N</sub> for specified power loss
13.5A
Resistance value for specified, current-dependent power loss
0.002Ω
Voltage type 1
DC
Nominal voltage
24V
LED schaltend für
NPN
Connection technology
Push-in CAGE CLAMP?
Actuation type
Operating tool
Connectable conductor materials
Copper
Nominal cross-section
1 mm2
Solid conductor
0.14 … 1.5?mm2?/ 24 … 16?AWG
Solid conductor; push-in termination
0.5 … 1.5?mm2?/ 20 … 16?AWG
Fine-stranded conductor
0.14 … 1.5?mm2?/ 24 … 16?AWG
Fine-stranded conductor; with insulated ferrule
0.14 … 0.75?mm2?/ 24 … 18?AWG
Fine-stranded conductor; with ferrule; push-in termination
0.5 … 0.75?mm2?/ 20 … 18?AWG
Note (conductor cross-section)
Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination.
Strip length
9 … 11?mm?/ 0.35 … 0.43?inches
Wiring direction
Front-entry wiring
Test specification <br/>Railway applications – <br/>Rolling stock – <br/>Electronic equipment
DIN EN 50155 (VDE 0115-200):2022-06
Test procedure <br/>Railway applications – <br/>Rolling stock equipment – <br/>Shock and vibration tests
DIN EN 61373 (VDE 0115-0106):2011-04
Spectrum/Installation location
Service life test, Category?1, Class?A/B
Function test with noise-like vibration
Test passed according to Section 8 of the standard
Frequency
f1= 5 Hz to f2= 150 Hz
Acceleration
5g (highest test level used for all axes)
Test duration per axis
5 h
Test directions
X, Y and Z axes
Monitoring for contact faults/interruptions
Passed
Voltage drop measurement before and after each axis
Passed
Simulated service life test through increased levels of noise-like vibration
Test passed according to Section 9 of the standard
Extended test scope: Monitoring for contact faults/interruptions
Passed
Extended test scope: Voltage drop measurement before and after each axis
Passed
Shock test
Test passed according to Section 10 of the standard
Shock form
Half sine
Shock duration
30 ms
Number of shocks per axis
3 pos. und 3 neg.
Vibration and shock stress for rolling stock equipment
Passed

Specifications may be subject to change without notice
