Product Model
2000-5410/1101-951
Selling Points

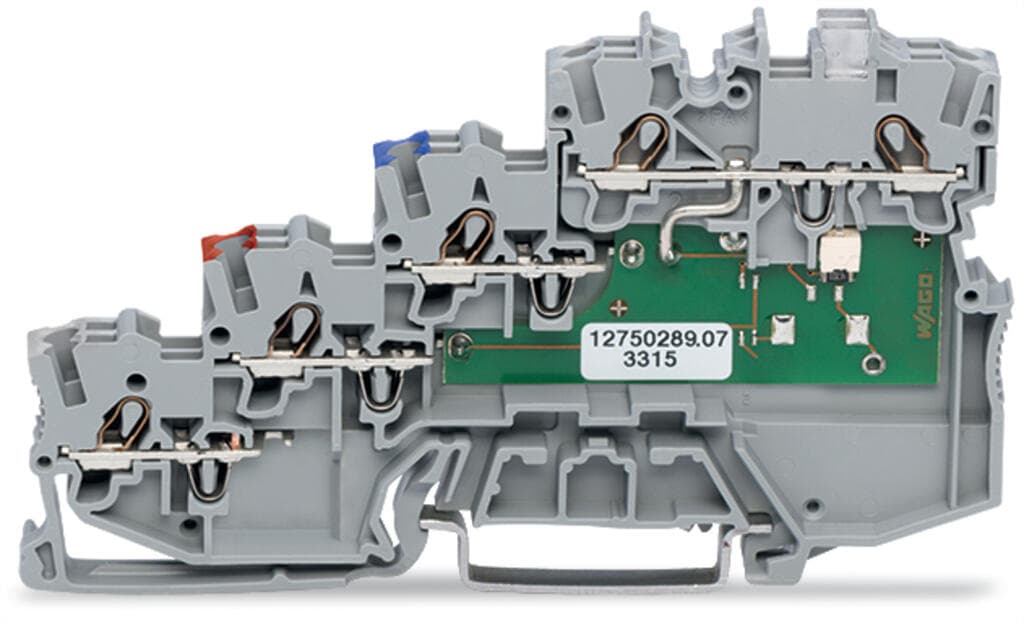

- 14-Conductor Design: Accommodates four conductors or ten wires with a nominal cross-section of 1mm².
- 2Yellow LED Indicator: Provides visual feedback for 24Vdc applications.
- 3NPN Switching Compatibility: Ideal for NPN (low-side) switching sensors.
- 4Ground Connection via Jumper Bars: Ensures secure and reliable ground connection.
- 5Push-in CAGE CLAMP Spring Connections: Provides secure wiring without the need for tools.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Safety information | Ground connection via commoning to terminal blocks with ground foot | Clamping units | 10 |
Total number of potentials | 5 | Number of levels | 4 |
Number of jumper slots | 4 | Width | 7?mm?/ 0.276?inches |
Height | 97.3?mm?/ 3.831?inches | Depth from upper-edge of DIN-rail | 52.4?mm?/ 2.063?inches |
Mounting type | DIN-35 rail | Marking level | Center/side marking |
Note (material data) | Information on material specifications can be found here | Color | gray |
Material group | I | Insulation material (main housing) | Polyamide (PA66) |
Flammability class per UL94 | V0 | Fire load | 0.397MJ |
Weight | 19.4g | Processing temperature | -35 … +85?°C |
Continuous operating temperature | -60 … +105?°C | eCl@ss 10.0 | 27-14-11-28 |
eCl@ss 9.0 | 27-14-11-28 | ETIM 9.0 | EC000900 |
ETIM 8.0 | EC000900 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 50?pcs | Packaging type | Box |
Country of origin | DE | GTIN | 4055143452885 |
Customs tariff number | 8536904000 | RoHS Compliance Status | Compliant,No Exemption |
Ratings per | IEC/EN 60947-7-1 | Rated current | 13.5A |
Approvals per | CSA 22.2 No 158 | Rated voltage UL (Use Group B) | 24V |
Rated current UL (Use Group B) | 15A | Rated voltage UL (Use Group D) | 24V |
Rated current UL (Use Group D) | 15A | Rated voltage CSA (Use Group C) | 24V |
Rated current CSA (Use Group C) | 10A | Power loss, per pole (potential) | 0.434W |
Rated current I<sub>N</sub> for specified power loss | 13.5A | Resistance value for specified, current-dependent power loss | 0.002Ω |
Voltage type 1 | DC | Nominal voltage | 24V |
LED schaltend für | NPN | Connection technology | Push-in CAGE CLAMP? |
Actuation type | Operating tool | Connectable conductor materials | Copper |
Nominal cross-section | 1 mm2 | Solid conductor | 0.14 … 1.5?mm2?/ 24 … 16?AWG |
Solid conductor; push-in termination | 0.5 … 1.5?mm2?/ 20 … 16?AWG | Fine-stranded conductor | 0.14 … 1.5?mm2?/ 24 … 16?AWG |
Fine-stranded conductor; with insulated ferrule | 0.14 … 0.75?mm2?/ 24 … 18?AWG | Fine-stranded conductor; with ferrule; push-in termination | 0.5 … 0.75?mm2?/ 20 … 18?AWG |
Note (conductor cross-section) | Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination. | Strip length | 9 … 11?mm?/ 0.35 … 0.43?inches |
Wiring direction | Front-entry wiring | Test specification <br/>Railway applications – <br/>Rolling stock – <br/>Electronic equipment | DIN EN 50155 (VDE 0115-200):2022-06 |
Test procedure <br/>Railway applications – <br/>Rolling stock equipment – <br/>Shock and vibration tests | DIN EN 61373 (VDE 0115-0106):2011-04 | Spectrum/Installation location | Service life test, Category?1, Class?A/B |
Function test with noise-like vibration | Test passed according to Section 8 of the standard | Frequency | f1= 5 Hz to f2= 150 Hz |
Acceleration | 5g (highest test level used for all axes) | Test duration per axis | 5 h |
Test directions | X, Y and Z axes | Monitoring for contact faults/interruptions | Passed |
Voltage drop measurement before and after each axis | Passed | Simulated service life test through increased levels of noise-like vibration | Test passed according to Section 9 of the standard |
Extended test scope: Monitoring for contact faults/interruptions | Passed | Extended test scope: Voltage drop measurement before and after each axis | Passed |
Shock test | Test passed according to Section 10 of the standard | Shock form | Half sine |
Shock duration | 30 ms | Number of shocks per axis | 3 pos. und 3 neg. |
Vibration and shock stress for rolling stock equipment | Passed |
