Product Model
2000-5420/1399-987
Selling Points

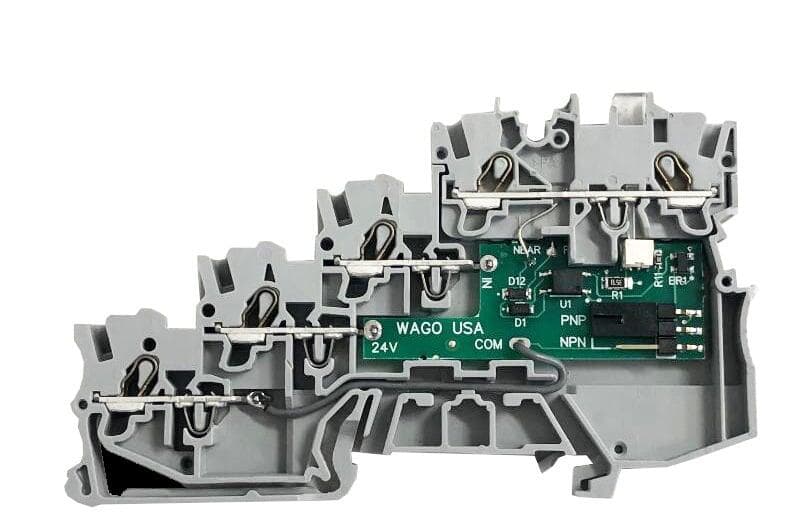

- 1The WAGO 2000-5420/1399-987 terminal block ensures reliable and efficient electrical connections with its Push-in CAGE CLAMP technology.
- 2Constructed with high-quality materials, this terminal block is designed to withstand harsh industrial environments.
- 3Featuring a simple and intuitive design, the WAGO 2000-5420/1399-987 terminal block is easy to install and use.
- 4Suitable for various industrial applications, including sensor connections, this terminal block offers flexibility and reliability.
- 5Meets industry standards with its 1 mm² conductor capacity and gray color coding for clear identification.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Color | gray | Insulation material (main housing) | Polyamide (PA66) |
Flammability class per UL94 | V0 | Ambient temperature (operation) | 0 °C ... +40 °C |
Packaging type | box | Width | 7 mm / 0.276 inch |
Height from upper-edge of DIN-rail | 52.4 mm / 2.063 inch | Design | horizontal type |
Mounting type | DIN-35 rail | Nominal input voltage U<sub>N</sub> | 24 VDC |
Input voltage range | DC 19.2 ... 28.8 V | Nominal input current at U<sub>N</sub> | 7 mA |
Switching frequency | Max 500 Hz | Status indicator | Green LED |
Specifications may be subject to change without notice
