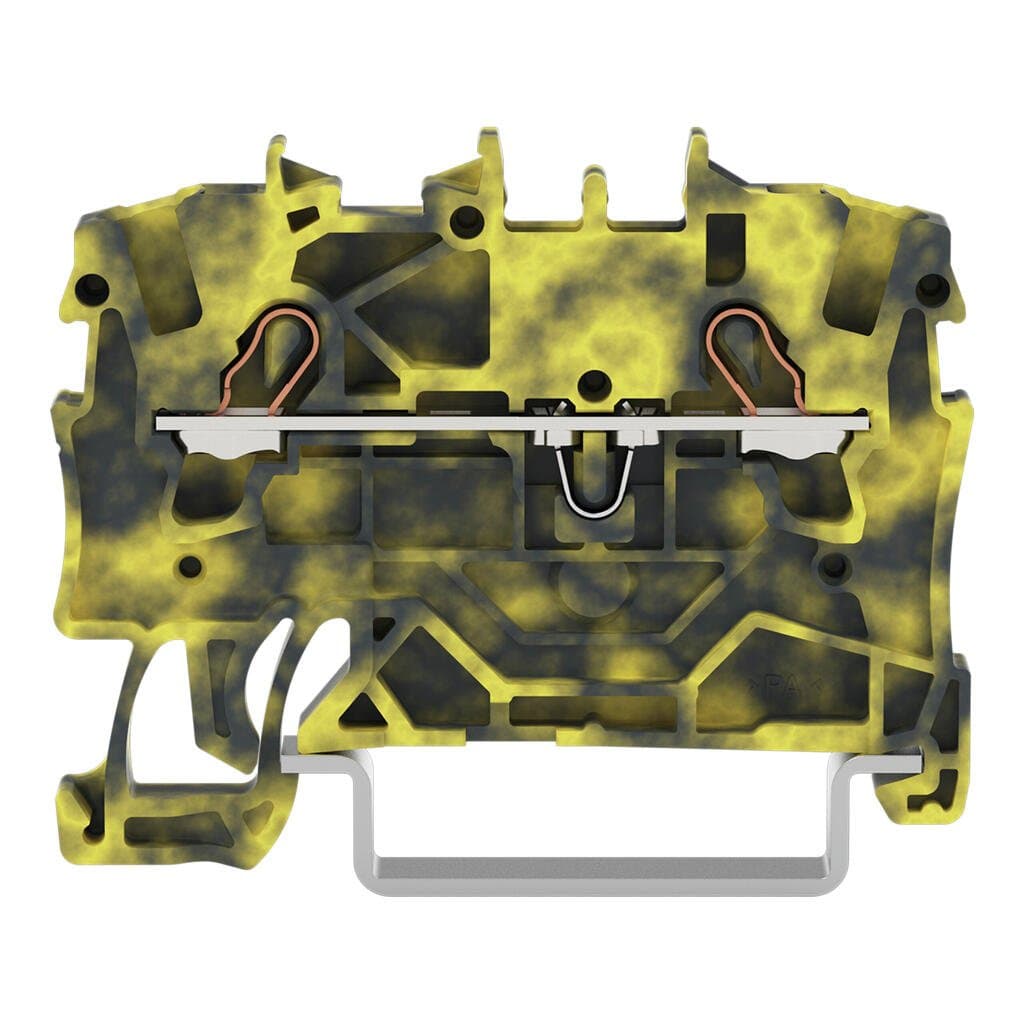

Product Model
2001-1201/000-053
Selling Points
- 1Designed for hazardous environments, ensuring safety in explosive zones.
- 2Easy installation on DIN-rail 35 x 15 and 35 x 7.5, ideal for compact systems.
- 3Quick and secure connection of conductors up to 2.5 mm².
- 4Rated current up to 18A, suitable for demanding electrical applications.
- 5Meets international standards including UL, CSA, and ATEX certifications for global use.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Clamping units | 2 | Total number of potentials | 1 |
Number of levels | 1 | Number of jumper slots | 2 |
Width | 4.2?mm?/ 0.165?inches | Height | 48.5?mm?/ 1.909?inches |
Depth from upper-edge of DIN-rail | 32.9?mm?/ 1.295?inches | Depth | 39.5 mm / 1.555 inches |
Mounting type | DIN-35 rail | Marking level | Center/side marking |
Note (material data) | Information on material specifications can be found here | Color | dark gray/yellow |
Material group | I | Insulation material (main housing) | Polyamide (PA66) |
Flammability class per UL94 | V0 | Fire load | 0.09MJ |
Weight | 4g | Processing temperature | -35 … +85?°C |
Continuous operating temperature | -60 … +105?°C | ETIM 9.0 | EC000897 |
ETIM 8.0 | EC000897 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 100?pcs | Packaging type | Box |
GTIN | 4066966256895 | RoHS Compliance Status | Compliant,No Exemption |
Ratings per | ATEX: PTB 05 ATEX 1094 U / IECEx: PTB 05.0034U (Ex eb IIC Gb) | Rated voltage (III / 3) | 800V |
Rated impulse voltage (III / 3) | 8kV | Rated current | 18A |
Current at conductor cross-section (max.) mm2 | 24A | Legend (ratings) | (III / 3) ? Overvoltage category III / Pollution degree 3 |
Approvals per | CSA 22.2 No 158 | Rated voltage UL (Use Group B) | 600V |
Rated current UL (Use Group B) | 15A | Rated voltage UL (Use Group C) | 600V |
Rated current UL (Use Group C) | 15A | Rated voltage CSA (Use Group B) | 600V |
Rated current CSA (Use Group B) | 15A | Rated voltage CSA (Use Group C) | 600V |
Rated current CSA (Use Group C) | 15A | Reference hazardous areas | See application instructions in section “Knowledge andDownloads – Documentation – Additional Information: Technical Section; Technical Explications” |
Rated voltage EN (Ex e II) | 550V | Rated current (Ex e II) | 17A |
Rated current (Ex e II) with jumper | 16A | Power loss, per pole (potential) | 0.593W |
Rated current I<sub>N</sub> for specified power loss | 18A | Resistance value for specified, current-dependent power loss | 0.002Ω |
Connection technology | Push-in CAGE CLAMP? | Actuation type | Operating tool |
Connectable conductor materials | Copper | Nominal cross-section | 1.5 mm2 |
Solid conductor | 0.25 … 2.5?mm2?/ 22 … 14?AWG | Solid conductor; push-in termination | 0.75 … 2.5?mm2?/ 18 … 14?AWG |
Fine-stranded conductor | 0.25 … 2.5?mm2?/ 22 … 14?AWG | Fine-stranded conductor; with insulated ferrule | 0.25 … 1.5?mm2?/ 22 … 16?AWG |
Fine-stranded conductor; with ferrule; push-in termination | 0.75 … 1.5?mm2?/ 18 … 16?AWG | Note (conductor cross-section) | Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination. |
Strip length | 9 … 11?mm?/ 0.35 … 0.43?inches | Wiring direction | Front-entry wiring |
Specifications may be subject to change without notice
