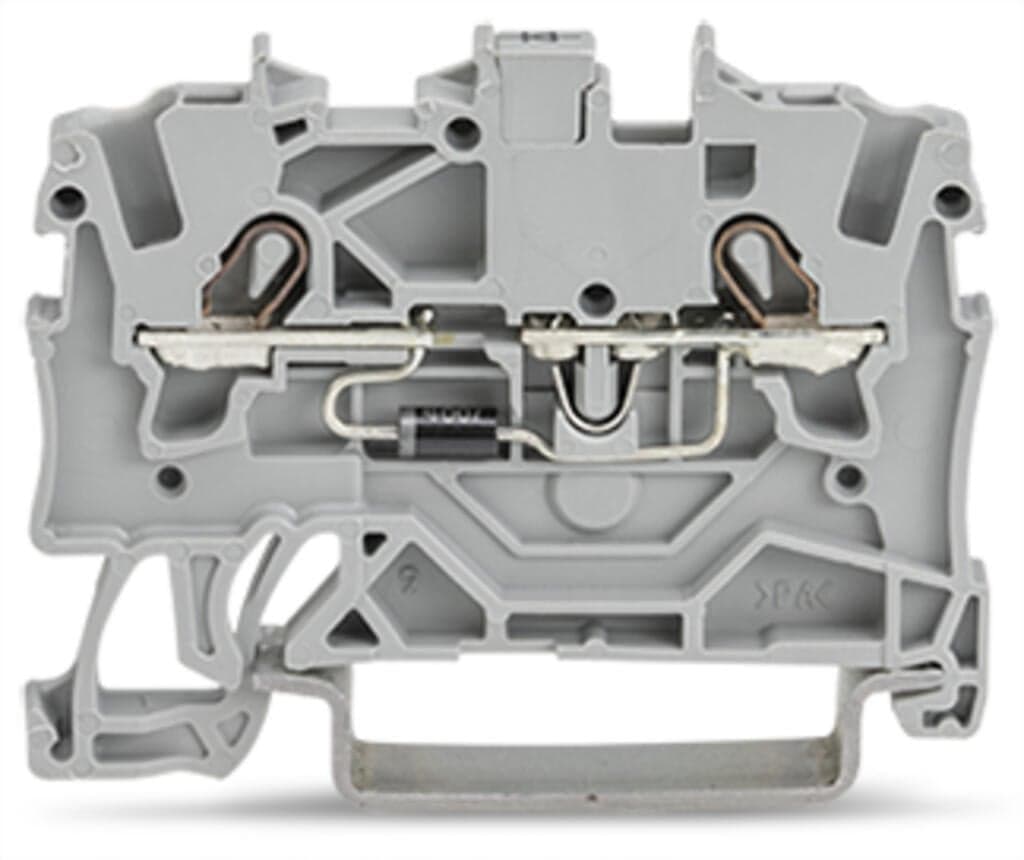

Product Model
2001-1211/1000-411
Selling Points
- 1Made from polyamide (PA66) for excellent insulation and durability.
- 2Features push-in CAGE CLAMP spring connections for quick and secure wire connections.
- 3Accommodates wire sizes from 0.25mm² to 2.5mm² or #22AWG to #14AWG.
- 4Measuring 4.2mm wide, perfect for tight spaces in industrial applications.
- 5Compliant with UL 1059 standards, ensuring safety and reliability in use.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Clamping units | 2 | Total number of potentials | 1 |
Number of levels | 1 | Number of jumper slots | 1 |
Width | 4.2?mm?/ 0.165?inches | Height | 48.5?mm?/ 1.909?inches |
Depth from upper-edge of DIN-rail | 32.9?mm?/ 1.295?inches | Mounting type | DIN-35 rail |
Marking level | Center/side marking | Note (material data) | Information on material specifications can be found here |
Color | gray | Material group | I |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Fire load | 0.105MJ | Weight | 4.5g |
Processing temperature | -35 … +85?°C | Continuous operating temperature | -60 … +105?°C |
Product Group | 22 (TOPJOB S) | eCl@ss 10.0 | 27-14-11-27 |
eCl@ss 9.0 | 27-14-11-27 | ETIM 9.0 | EC000903 |
ETIM 8.0 | EC000903 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 100?pcs | Packaging type | box |
Country of origin | CN | GTIN | 4045454537555 |
Customs tariff number | 8536904000 | CAS-No. | 7439-92-1 |
REACH Candidate List Substance | 2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol | RoHS Compliance Status | Compliant,With Exemption |
RoHS Exemption | 7(a) | SCIP notification number (Austria) | 6c8a1c1f-9b29-418f-aac5-092bea7266b8 |
SCIP notification number (Belgium) | d60e332d-f7dc-4c57-88b9-b5a1dde0b975 | SCIP notification number (Bulgaria) | 9706e664-bc8c-40a7-b6e2-c40c935dc285 |
SCIP notification number (Czech Republic) | c0a56fd6-6c51-4b7f-bcf5-4c62e8c40ab1 | SCIP notification number (Denmark) | c89d18ca-465f-46bc-a20e-88779edb3fdd |
SCIP notification number (Finland) | 4889623f-1e30-46ff-bbb1-a7cd574e8768 | SCIP notification number (France) | cd2ff139-5aa4-40a9-84c8-85c7da69221f |
SCIP notification number (Germany) | 9ea42ab6-93a7-4221-b4ce-70c103dee219 | SCIP notification number (Hungary) | d464444b-2da3-450b-b094-50c7c842c381 |
SCIP notification number (Italy) | 343ee529-b75b-4c03-b771-4420c106d5d4 | SCIP notification number (Netherlands) | 2f806d4e-f806-4151-a1ac-82c0e11817ac |
SCIP notification number (Poland) | 6cbc2c82-f4df-45d6-8e63-e81174bbcbe0 | SCIP notification number (Romania) | dadc6af2-63d6-480f-8c88-d07190ab68bb |
SCIP notification number (Sweden) | 6ca1db04-a66a-4be6-ae9f-2051d978b532 | Approvals per | UL 1059 |
Rated voltage UL (Use Group B) | 600V | Rated current UL (Use Group B) | 15A |
Rated voltage UL (Use Group C) | 600V | Rated current UL (Use Group C) | 15A |
Nominal voltage | 250V | Reverse voltage | 1,000V |
Continuous current (max.) | 500 mA | Connection technology | Push-in CAGE CLAMP? |
Actuation type | Operating tool | Connectable conductor materials | Copper |
Nominal cross-section | 1.5 mm2 | Solid conductor | 0.25 … 2.5?mm2?/ 22 … 14?AWG |
Solid conductor; push-in termination | 0.75 … 2.5?mm2?/ 18 … 14?AWG | Fine-stranded conductor | 0.25 … 2.5?mm2?/ 22 … 14?AWG |
Fine-stranded conductor; with insulated ferrule | 0.25 … 1.5?mm2?/ 22 … 16?AWG | Fine-stranded conductor; with ferrule; push-in termination | 0.75 … 1.5?mm2?/ 18 … 16?AWG |
Note (conductor cross-section) | Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination. | Strip length | 9 … 11?mm?/ 0.35 … 0.43?inches |
Wiring direction | Front-entry wiring | Test specification <br/>Railway applications – <br/>Rolling stock – <br/>Electronic equipment | DIN EN 50155 (VDE 0115-200):2022-06 |
Test procedure <br/>Railway applications – <br/>Rolling stock equipment – <br/>Shock and vibration tests | DIN EN 61373 (VDE 0115-0106):2011-04 | Spectrum/Installation location | Service life test, Category?1, Class?A/B |
Function test with noise-like vibration | Test passed according to Section 8 of the standard | Frequency | f1= 5 Hz to f2= 150 Hz |
Acceleration | 5g (highest test level used for all axes) | Test duration per axis | 5 h |
Test directions | X, Y and Z axes | Monitoring for contact faults/interruptions | Passed |
Voltage drop measurement before and after each axis | Passed | Simulated service life test through increased levels of noise-like vibration | Test passed according to Section 9 of the standard |
Extended test scope: Monitoring for contact faults/interruptions | Passed | Extended test scope: Voltage drop measurement before and after each axis | Passed |
Shock test | Test passed according to Section 10 of the standard | Shock form | Half sine |
Shock duration | 30 ms | Number of shocks per axis | 3 pos. und 3 neg. |
Vibration and shock stress for rolling stock equipment | Passed |
Specifications may be subject to change without notice
